Diodes Incorporated DMC3 Series

6 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated DMC3 Series series

The Diodes Incorporated Diodes Incorporated DMC3 Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common drain to source voltage of 30V and mounting type of Surface Mount. Variants differ by case, current - continuous drain (Id) @ 25°C and FET feature, so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated DMC3 Series part numbers are active and orderable.

Select a variant by

Case: 6-TSSOP, SC-88, SOT-363 · 6-XFDFN Exposed Pad · 8-SOIC (0.154\", 3.90mm Width) · SOT-23-6 Thin, TSOT-23-6 · SOT-963
Current - continuous drain (Id) @ 25°C: 1.1A, 700mA · 3.6A (Ta), 2.8A (Ta) · 6.5A (Ta), 4.2A (Ta) · 6.6A, 6.8A · 220mA, 200mA · 800mA (Ta), 550mA (Ta)
FET feature: - · Logic Level Gate · Standard
Gate charge (Qg) (Max) @ vgs: 0.38nC @ 4.5V · 0.9nC @ 4.5V · 1.2nC @ 10V, 800pC @ 10V · 4.6nC @ 4.5V, 5.1nC @ 4.5V · 10.5nC @ 10V · 11.3nC @ 10V
Input capacitance (Ciss) (Max) @ vds: 22.6pF @ 15V · 50pF @ 15V, 19pF @ 15V · 65.9pF @ 25V · 395pF @ 15V, 324pF @ 15V · 472pF @ 15V · 501pF @ 15V, 590pF @ 25V
Operating temperature: -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Power - max: 1.2W (Ta) · 1.8W · 290mW (Ta) · 350mW · 390mW · 830mW

Variant comparison

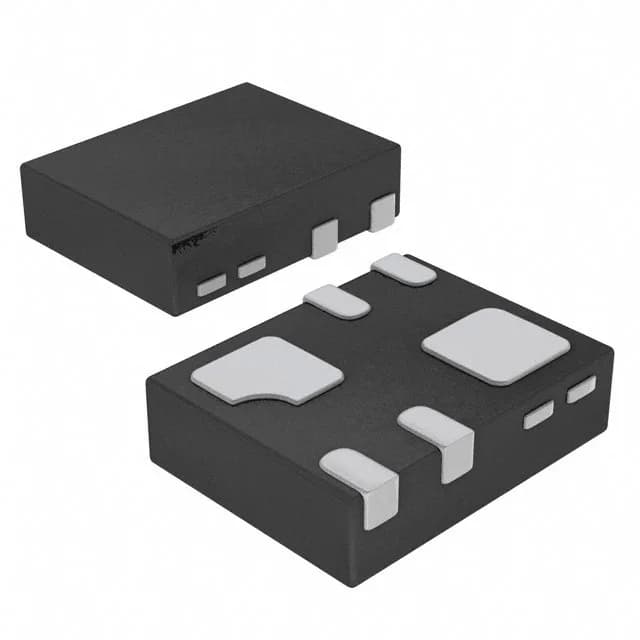

Parameter	DMC3025LSDQ-13	DMC3028LSD-13	DMC3060LVT-7	DMC31D5UDJ-7	DMC3401LDW-7	DMC3730UFL3-7
Case	8-SOIC (0.154\", 3.90mm Width)	8-SOIC (0.154\", 3.90mm Width)	SOT-23-6 Thin, TSOT-23-6	SOT-963	6-TSSOP, SC-88, SOT-363	6-XFDFN Exposed Pad
Current - continuous drain (Id) @ 25°C	6.5A (Ta), 4.2A (Ta)	6.6A, 6.8A	3.6A (Ta), 2.8A (Ta)	220mA, 200mA	800mA (Ta), 550mA (Ta)	1.1A, 700mA
FET feature	-	Logic Level Gate	Standard	Logic Level Gate	Standard	-
Gate charge (Qg) (Max) @ vgs	4.6nC @ 4.5V, 5.1nC @ 4.5V	10.5nC @ 10V	11.3nC @ 10V	0.38nC @ 4.5V	1.2nC @ 10V, 800pC @ 10V	0.9nC @ 4.5V
Input capacitance (Ciss) (Max) @ vds	501pF @ 15V, 590pF @ 25V	472pF @ 15V	395pF @ 15V, 324pF @ 15V	22.6pF @ 15V	50pF @ 15V, 19pF @ 15V	65.9pF @ 25V
Operating temperature	-55°C ~ 150°C (TJ)	-55°C~150°C(TJ)	-55°C~150°C(TJ)	-55°C ~ 150°C (TJ)	-55°C~150°C(TJ)	-55°C ~ 150°C (TJ)
Package	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)
Power - max	1.2W (Ta)	1.8W	830mW	350mW	290mW (Ta)	390mW

Shared specifications

Drain to source voltage: 30V
Mounting type: Surface Mount
