How many Diodes Incorporated Diodes Incorporated DFLS Series part numbers are listed?

11 Diodes Incorporated Diodes Incorporated DFLS Series part numbers are listed, each with specifications and a datasheet where available.

Diodes Incorporated DFLS Series

11 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated DFLS Series series

The Diodes Incorporated Diodes Incorporated DFLS Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of POWERDI®123, mounting type of Surface Mount and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by capacitance @ vr, f, current - average rectified and current - reverse leakage @ vr, so you can match the exact capacitance @ vr, f your application requires using the selection guide below.

Select a variant by

Capacitance @ vr, f: 28pF @ 5V, 1MHz · 85pF @ 10V, 1MHz
Current - average rectified: 1A · 2A
Current - reverse leakage @ vr: 2 µA @ 150 V · 200 µA @ 30 V
Operating temperature - junction: -65°C ~ 150°C · -55°C ~ 175°C
Voltage - DC reverse (Vr): 30 V · 150 V
Voltage - forward (Vf) (Max) @ if: 450 mV @ 2 A · 820 mV @ 1 A

Variant comparison

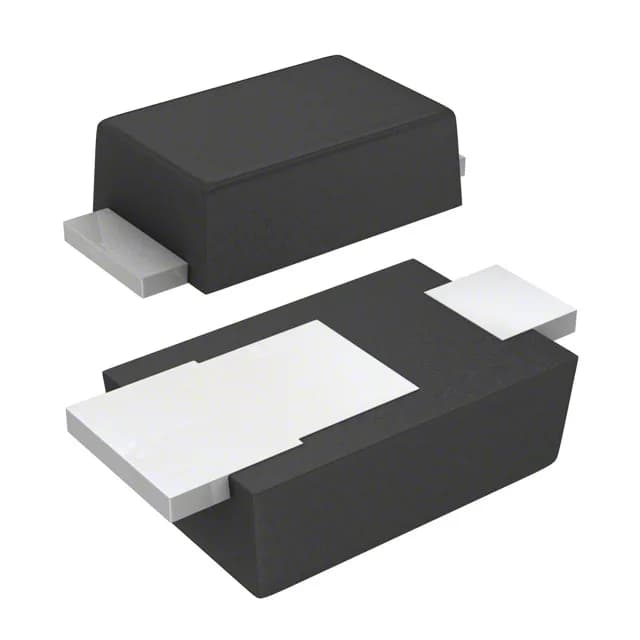

Parameter	DFLS1150-7	DFLS230LH-7
Capacitance @ vr, f	28pF @ 5V, 1MHz	85pF @ 10V, 1MHz
Current - average rectified	1A	2A
Current - reverse leakage @ vr	2 µA @ 150 V	200 µA @ 30 V
Operating temperature - junction	-55°C ~ 175°C	-65°C ~ 150°C
Voltage - DC reverse (Vr)	150 V	30 V
Voltage - forward (Vf) (Max) @ if	820 mV @ 1 A	450 mV @ 2 A

Shared specifications

Case: POWERDI®123
Mounting type: Surface Mount
Package: Tape & Reel (TR); Cut Tape (CT)
Speed: Fast Recovery =< 500ns, > 200mA (Io)

Request a quote on any Diodes Incorporated DFLS Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Diodes Incorporated Diodes Incorporated DFLS Series variants differ?: Diodes Incorporated DFLS Series part numbers differ by capacitance @ vr, f, current - average rectified, current - reverse leakage @ vr and operating temperature - junction. Use the selection guide above to pick by capacitance @ vr, f.
How many Diodes Incorporated Diodes Incorporated DFLS Series part numbers are listed?: 11 Diodes Incorporated Diodes Incorporated DFLS Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated DFLS Series?: Request a quote (RFQ) for any Diodes Incorporated DFLS Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
