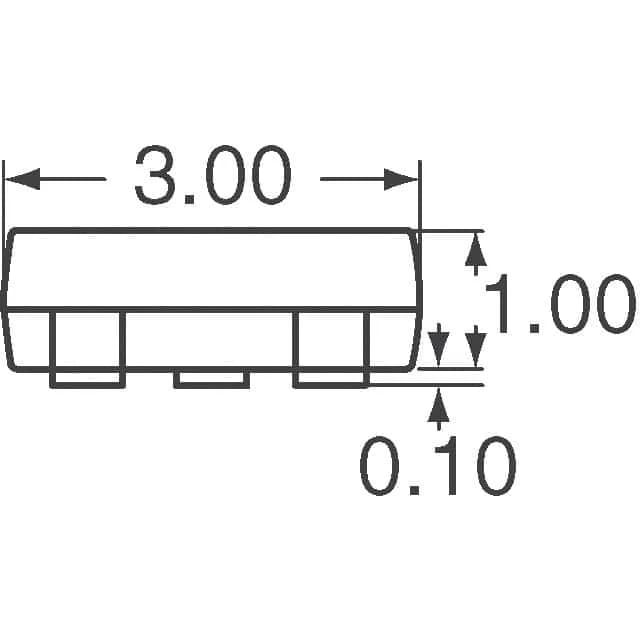

DDTD113ZC-7-F
Diodes Incorporated
Tape & Reel (TR); Cut Tape (CT)200 mWSurface Mount
Ref. price$0.31
Lead time on requestGet quote ›
Diodes Incorporated DDTD Series
6 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated DDTD Series series
The Diodes Incorporated Diodes Incorporated DDTD Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-236-3, SC-59, SOT-23-3, current - collector (Ic) of 500 mA and frequency of 200 MHz. Variants differ by current - collector cutoff, DC current gain (hFE) (Min) @ ic, vce and resistor - base (R1), so you can match the exact current - collector cutoff your application requires using the selection guide below.
Select a variant by
- Current - collector cutoff
- 500nA · 500nA (ICBO)
- DC current gain (hFE) (Min) @ ic, vce
- 56 @ 50mA, 5V · 100 @ 50mA, 5V
- Resistor - base (R1)
- 1 kOhms · 2.2 kOhms
Variant comparison
| Parameter | DDTD113ZC-7-F | DDTD123TC-7-F |
|---|---|---|
| Current - collector cutoff | 500nA | 500nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 56 @ 50mA, 5V | 100 @ 50mA, 5V |
| Resistor - base (R1) | 1 kOhms | 2.2 kOhms |
Shared specifications
- Case
- TO-236-3, SC-59, SOT-23-3
- Current - collector (Ic)
- 500 mA
- Frequency
- 200 MHz
- Mounting type
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Power - max
- 200 mW
- Transistor type
- NPN - Pre-Biased
- Vce saturation (Max) @ ib, ic
- 300mV @ 2.5mA, 50mA
- Voltage - collector emitter breakdown
- 50 V
Request a quote on any Diodes Incorporated DDTD Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated DDTD Series variants differ?
- Diodes Incorporated DDTD Series part numbers differ by current - collector cutoff, DC current gain (hFE) (Min) @ ic, vce and resistor - base (R1). Use the selection guide above to pick by current - collector cutoff.
- How many Diodes Incorporated Diodes Incorporated DDTD Series part numbers are listed?
- 6 Diodes Incorporated Diodes Incorporated DDTD Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated DDTD Series?
- Request a quote (RFQ) for any Diodes Incorporated DDTD Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
