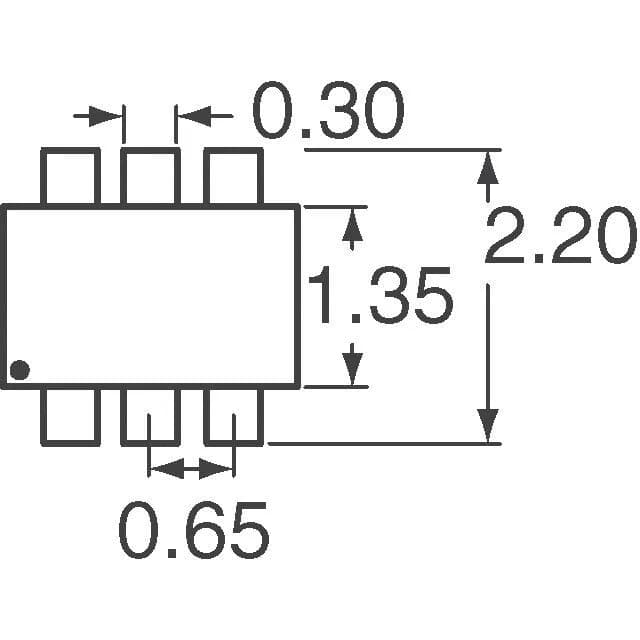

DCX123JU-7-F
Diodes Incorporated
Tape & Reel (TR); Cut Tape (CT)200mWSurface Mount
Ref. price$0.37
Lead time on requestGet quote ›
Diodes Incorporated DCX1 Series
8 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated DCX1 Series series
The Diodes Incorporated Diodes Incorporated DCX1 Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of 6-TSSOP, SC-88, SOT-363, current - collector (Ic) of 100mA and current - collector cutoff of 500nA. Variants differ by DC current gain (hFE) (Min) @ ic, vce, resistor - base (R1) and resistor - emitter base (R2), so you can match the exact DC current gain (hFE) (Min) @ ic, vce your application requires using the selection guide below.
Select a variant by
- DC current gain (hFE) (Min) @ ic, vce
- 56 @ 5mA, 5V · 80 @ 10mA, 5V
- Resistor - base (R1)
- 2.2kOhms · 22kOhms
- Resistor - emitter base (R2)
- 22kOhms · 47kOhms
- Vce saturation (Max) @ ib, ic
- 300mV @ 250µA, 5mA · 300mV @ 500µA, 10mA
Variant comparison
| Parameter | DCX123JU-7-F | DCX124EU-7-F |
|---|---|---|
| DC current gain (hFE) (Min) @ ic, vce | 80 @ 10mA, 5V | 56 @ 5mA, 5V |
| Resistor - base (R1) | 2.2kOhms | 22kOhms |
| Resistor - emitter base (R2) | 47kOhms | 22kOhms |
| Vce saturation (Max) @ ib, ic | 300mV @ 250µA, 5mA | 300mV @ 500µA, 10mA |
Shared specifications
- Case
- 6-TSSOP, SC-88, SOT-363
- Current - collector (Ic)
- 100mA
- Current - collector cutoff
- 500nA
- Frequency
- 250MHz
- Mounting type
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Power - max
- 200mW
- Transistor type
- 1 NPN, 1 PNP - Pre-Biased (Dual)
- Voltage - collector emitter breakdown
- 50V
Request a quote on any Diodes Incorporated DCX1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated DCX1 Series variants differ?
- Diodes Incorporated DCX1 Series part numbers differ by DC current gain (hFE) (Min) @ ic, vce, resistor - base (R1), resistor - emitter base (R2) and vce saturation (Max) @ ib, ic. Use the selection guide above to pick by DC current gain (hFE) (Min) @ ic, vce.
- How many Diodes Incorporated Diodes Incorporated DCX1 Series part numbers are listed?
- 8 Diodes Incorporated Diodes Incorporated DCX1 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated DCX1 Series?
- Request a quote (RFQ) for any Diodes Incorporated DCX1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
