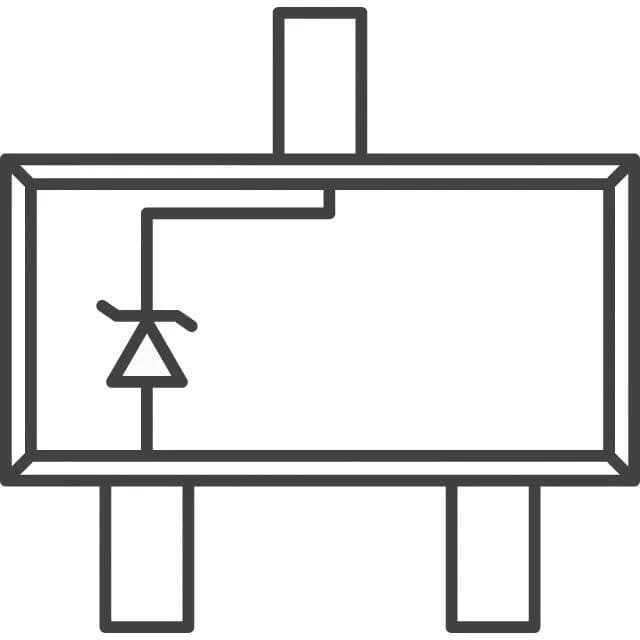

BZX84C10T-7-F
Diodes Incorporated
Tape & Reel (TR); Cut Tape (CT)-65°C~150°C±6%
Ref. price$0.3500
Lead time on requestGet quote ›
Diodes Incorporated BZX84C Series
46 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated BZX84C Series series
The Diodes Incorporated Diodes Incorporated BZX84C Series series groups 46 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, case and current - reverse leakage @ vr, so you can match the exact package your application requires using the selection guide below. All listed Diodes Incorporated BZX84C Series part numbers are active and orderable.
Select a variant by
- Package
- Cut Tape (CT) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Case
- SC-70, SOT-323 · SOT-523 · TO-236-3, SC-59, SOT-23-3
- Current - reverse leakage @ vr
- 100 nA @ 8 V · 100 nA @ 10.5 V · 100 nA @ 11.2 V · 100 nA @ 12.6 V · 100 nA @ 16.8 V · 200 nA @ 7 V
- Impedance (Max)
- 20 Ohms · 25 Ohms · 30 Ohms · 40 Ohms · 45 Ohms · 70 Ohms
- Operating temperature
- -65°C ~ 125°C · -65°C ~ 150°C · -65°C~125°C · -65°C~150°C
- Power - max
- 150 mW · 200 mW · 300 mW
- Tolerance
- ±5% · ±6%
Variant comparison
| Parameter | BZX84C10T-7-F | BZX84C11-7-F | BZX84C11W-7-F | BZX84C12-7-F | BZX84C12T-7-F | BZX84C12W-7-F |
|---|---|---|---|---|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Case | SOT-523 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SOT-523 | SC-70, SOT-323 |
| Current - reverse leakage @ vr | 200 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V |
| Impedance (Max) | 20 Ohms | 20 Ohms | 20 Ohms | 25 Ohms | 25 Ohms | 25 Ohms |
| Operating temperature | -65°C~150°C | -65°C ~ 150°C | -65°C ~ 125°C | -65°C~150°C | -65°C ~ 150°C | -65°C ~ 125°C |
| Power - max | 150 mW | 300 mW | 200 mW | 300 mW | 150 mW | 200 mW |
| Tolerance | ±6% | ±5% | ±5% | ±5% | ±5% | ±5% |
Request a quote on any Diodes Incorporated BZX84C Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated BZX84C Series variants differ?
- Diodes Incorporated BZX84C Series part numbers differ by package, case, current - reverse leakage @ vr and impedance (Max). Use the selection guide above to pick by package.
- How many Diodes Incorporated Diodes Incorporated BZX84C Series part numbers are listed?
- 46 Diodes Incorporated Diodes Incorporated BZX84C Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated BZX84C Series?
- Request a quote (RFQ) for any Diodes Incorporated BZX84C Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
