Diodes Incorporated BSS1 Series

9 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated BSS1 Series series

The Diodes Incorporated Diodes Incorporated BSS1 Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common mounting type of Surface Mount and technology of MOSFET (Metal Oxide). Variants differ by case, current - continuous drain (Id) @ 25°C and drain to source voltage, so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated BSS1 Series part numbers are active and orderable.

Select a variant by

Case: 6-TSSOP, SC-88, SOT-363 · SC-70, SOT-323 · TO-236-3, SC-59, SOT-23-3
Current - continuous drain (Id) @ 25°C: 170mA (Ta) · 200mA · 200mA (Ta) · 310mA (Ta)
Drain to source voltage: 50 V · 50V · 100 V
FET feature: - · Logic Level Gate
Input capacitance (Ciss) (Max) @ vds: 20 pF @ 25 V · 23.2 pF @ 25 V · 50 pF @ 10 V · 50pF @ 10V · 60 pF @ 25 V
Operating temperature: -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Rds on (Max) @ id, vgs: 3.5Ohm @ 220mA, 10V · 6Ohm @ 100mA, 10V · 6Ohm @ 170mA, 10V

Variant comparison

Parameter	BSS123-7-F	BSS123TA	BSS123WQ-7-F	BSS138-7-F	BSS138DW-7-F	BSS138DWQ-13

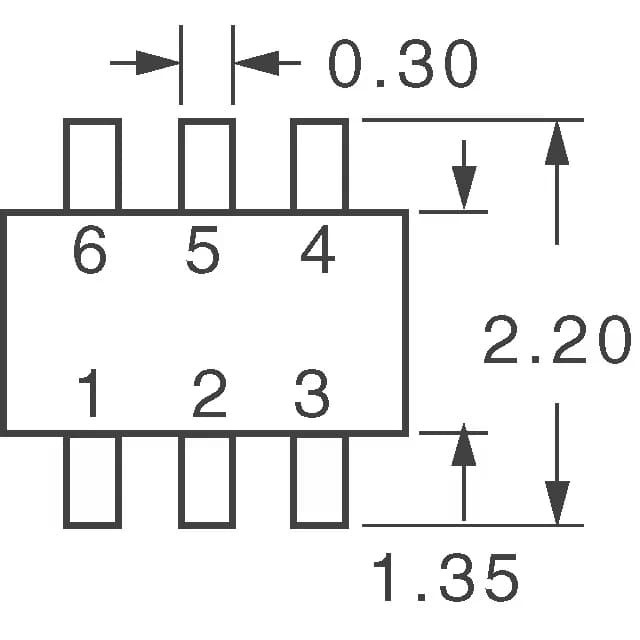

Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	SC-70, SOT-323	TO-236-3, SC-59, SOT-23-3	6-TSSOP, SC-88, SOT-363	6-TSSOP, SC-88, SOT-363
Current - continuous drain (Id) @ 25°C	170mA (Ta)	170mA (Ta)	170mA (Ta)	200mA (Ta)	200mA	200mA
Drain to source voltage	100 V	100 V	100 V	50 V	50V	50V
FET feature	-	-	-	-	Logic Level Gate	-
Input capacitance (Ciss) (Max) @ vds	60 pF @ 25 V	20 pF @ 25 V	60 pF @ 25 V	50 pF @ 10 V	50pF @ 10V	50pF @ 10V
Operating temperature	-55°C~150°C(TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Package	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)
Rds on (Max) @ id, vgs	6Ohm @ 170mA, 10V	6Ohm @ 100mA, 10V	6Ohm @ 170mA, 10V	3.5Ohm @ 220mA, 10V	3.5Ohm @ 220mA, 10V	3.5Ohm @ 220mA, 10V

Shared specifications

Mounting type: Surface Mount
Technology: MOSFET (Metal Oxide)

Request a quote on any Diodes Incorporated BSS1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Diodes Incorporated Diodes Incorporated BSS1 Series variants differ?: Diodes Incorporated BSS1 Series part numbers differ by case, current - continuous drain (Id) @ 25°C, drain to source voltage and FET feature. Use the selection guide above to pick by case.
How many Diodes Incorporated Diodes Incorporated BSS1 Series part numbers are listed?: 9 Diodes Incorporated Diodes Incorporated BSS1 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated BSS1 Series?: Request a quote (RFQ) for any Diodes Incorporated BSS1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
