BC856A-7-F
Diodes Incorporated
Tape & Reel (TR); Cut Tape (CT)-65°C~150°C(TJ)200MHz
Ref. price$0.2100
Lead time on requestGet quote ›
Diodes Incorporated BC85 Series
15 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated BC85 Series series
The Diodes Incorporated Diodes Incorporated BC85 Series series groups 15 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common current - collector (Ic) of 100 mA, mounting type of Surface Mount and transistor type of PNP. Variants differ by case, current - collector cutoff and DC current gain (hFE) (Min) @ ic, vce, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 3-UFDFN · SC-70, SOT-323 · TO-236-3, SC-59, SOT-23-3
- Current - collector cutoff
- 15nA · 15nA (ICBO) · 15µA (ICBO)
- DC current gain (hFE) (Min) @ ic, vce
- 125 @ 2mA, 5V · 220 @ 2mA, 5V
- Frequency
- 100MHz · 200MHz
- Operating temperature
- -65°C ~ 150°C (TJ) · -65°C~150°C(TJ) · -55°C ~ 150°C (TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Power - max
- 200 mW · 250 mW · 300 mW · 310 mW
- Voltage - collector emitter breakdown
- 45 V · 65 V
Variant comparison

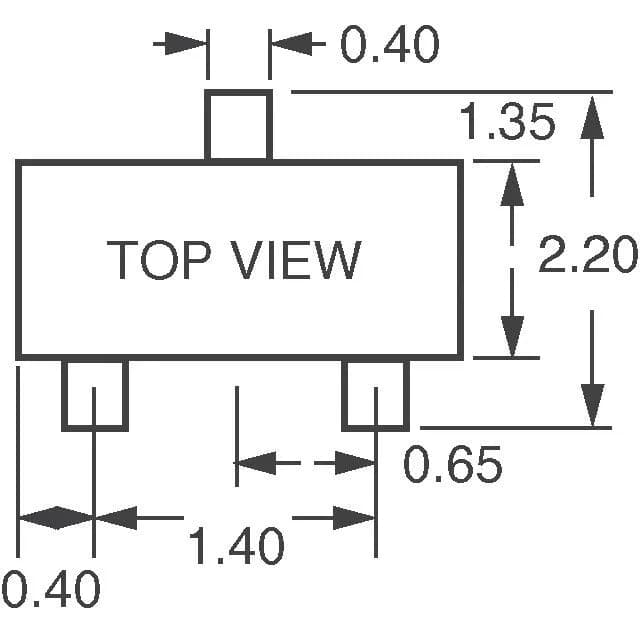

| Parameter | BC856A-7-F | BC856B-13-F | BC856B-7-F | BC856BW-7-F | BC857B-7-F | BC857BLP-7B |
|---|---|---|---|---|---|---|
| Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | 3-UFDFN |
| Current - collector cutoff | 15nA | 15µA (ICBO) | 15nA | 15nA (ICBO) | 15nA | 15nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 125 @ 2mA, 5V | 220 @ 2mA, 5V | 220 @ 2mA, 5V | 220 @ 2mA, 5V | 220 @ 2mA, 5V | 220 @ 2mA, 5V |
| Frequency | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 100MHz |
| Operating temperature | -65°C~150°C(TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Power - max | 300 mW | 310 mW | 300 mW | 200 mW | 300 mW | 250 mW |
| Voltage - collector emitter breakdown | 65 V | 65 V | 65 V | 65 V | 45 V | 45 V |
Shared specifications
- Current - collector (Ic)
- 100 mA
- Mounting type
- Surface Mount
- Transistor type
- PNP
- Vce saturation (Max) @ ib, ic
- 650mV @ 5mA, 100mA
Request a quote on any Diodes Incorporated BC85 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated BC85 Series variants differ?
- Diodes Incorporated BC85 Series part numbers differ by case, current - collector cutoff, DC current gain (hFE) (Min) @ ic, vce and frequency. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated BC85 Series part numbers are listed?
- 15 Diodes Incorporated Diodes Incorporated BC85 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated BC85 Series?
- Request a quote (RFQ) for any Diodes Incorporated BC85 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
