BC846ASQ-7-F
Diodes Incorporated
Tape & Reel (TR) Cut Tape (CT)-55°C ~ 150°C (TJ)100MHz
Ref. price$0.3900
Lead time on requestGet quote ›
Diodes Incorporated BC84 Series
17 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated BC84 Series series
The Diodes Incorporated Diodes Incorporated BC84 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount. Variants differ by case, current - collector (Ic) and current - collector cutoff, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 3-XFDFN · 6-TSSOP, SC-88, SOT-363 · SC-70, SOT-323 · SOT-523 · SOT-563, SOT-666 · TO-236-3, SC-59, SOT-23-3
- Current - collector (Ic)
- 100 mA · 100mA
- Current - collector cutoff
- 15nA · 15nA (ICBO) · 20nA (ICBO)
- DC current gain (hFE) (Min) @ ic, vce
- 110 @ 2mA, 5V · 200 @ 2mA, 5V · 200 @ 2mA, 5V / 220 @ 2mA, 5V
- Frequency
- 100MHz · 300MHz · 300MHz, 200MHz
- Operating temperature
- -65°C ~ 150°C (TJ) · -65°C~150°C(TJ) · -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Power - max
- 150 mW · 150mW · 200 mW · 200mW · 300 mW · 410 mW
Variant comparison

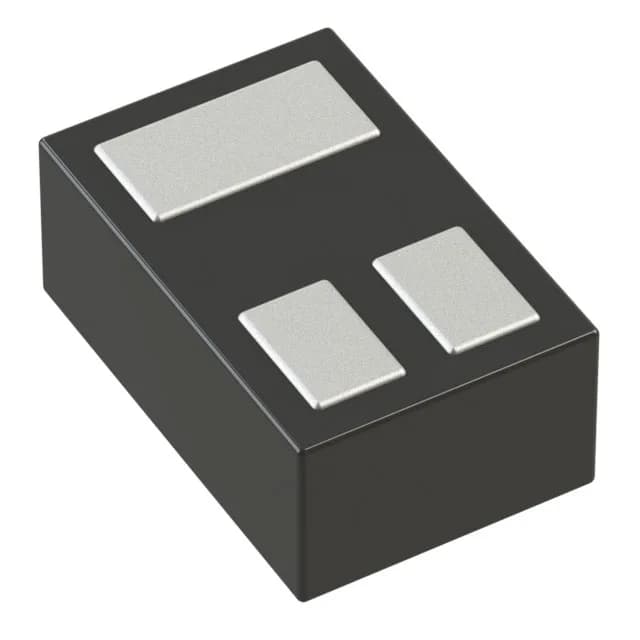

| Parameter | BC846ASQ-7-F | BC846AW-7-F | BC846B-7-F | BC846BLP4-7B | BC847A-7-F | BC847AT-7-F |
|---|---|---|---|---|---|---|
| Case | 6-TSSOP, SC-88, SOT-363 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | 3-XFDFN | TO-236-3, SC-59, SOT-23-3 | SOT-523 |
| Current - collector (Ic) | 100mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Current - collector cutoff | 15nA | 20nA (ICBO) | 15nA | 15nA | 15nA | 15nA (ICBO) |
| DC current gain (hFE) (Min) @ ic, vce | 110 @ 2mA, 5V | 110 @ 2mA, 5V | 200 @ 2mA, 5V | 200 @ 2mA, 5V | 110 @ 2mA, 5V | 110 @ 2mA, 5V |
| Frequency | 100MHz | 300MHz | 300MHz | 300MHz | 300MHz | 100MHz |
| Operating temperature | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C~150°C(TJ) | -55°C~150°C(TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Power - max | 200mW | 200 mW | 300 mW | 410 mW | 300 mW | 150 mW |
Shared specifications
- Mounting type
- Surface Mount
Request a quote on any Diodes Incorporated BC84 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated BC84 Series variants differ?
- Diodes Incorporated BC84 Series part numbers differ by case, current - collector (Ic), current - collector cutoff and DC current gain (hFE) (Min) @ ic, vce. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated BC84 Series part numbers are listed?
- 17 Diodes Incorporated Diodes Incorporated BC84 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated BC84 Series?
- Request a quote (RFQ) for any Diodes Incorporated BC84 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
