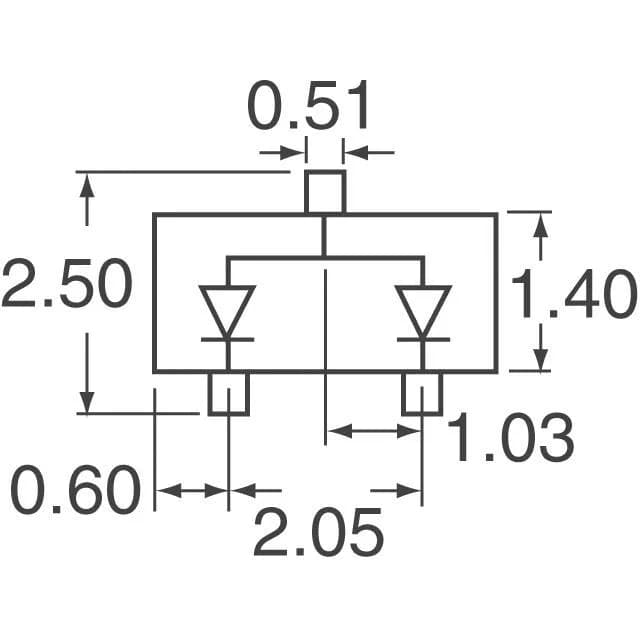

AZ23C5V6-7-F
Diodes Incorporated
Tape & Reel (TR); Cut Tape (CT)±5%300 mW
Ref. price$0.39
Lead time on requestGet quote ›
Diodes Incorporated AZ23C Series
14 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated AZ23C Series series
The Diodes Incorporated Diodes Incorporated AZ23C Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of TO-236-3, SC-59, SOT-23-3, configuration of 1 Pair Common Anode and mounting type of Surface Mount. Variants differ by impedance (Max) and voltage - zener (Nom), so you can match the exact impedance (Max) your application requires using the selection guide below.
Select a variant by
- Impedance (Max)
- 10 Ohms · 40 Ohms
- Voltage - zener (Nom)
- 5.6 V · 6.2 V
Variant comparison
| Parameter | AZ23C5V6-7-F | AZ23C6V2-7-F |
|---|---|---|
| Impedance (Max) | 40 Ohms | 10 Ohms |
| Voltage - zener (Nom) | 5.6 V | 6.2 V |
Shared specifications
- Case
- TO-236-3, SC-59, SOT-23-3
- Configuration
- 1 Pair Common Anode
- Mounting type
- Surface Mount
- Operating temperature
- -65°C ~ 150°C
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Power - max
- 300 mW
- Tolerance
- ±5%
Request a quote on any Diodes Incorporated AZ23C Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated AZ23C Series variants differ?
- Diodes Incorporated AZ23C Series part numbers differ by impedance (Max) and voltage - zener (Nom). Use the selection guide above to pick by impedance (Max).
- How many Diodes Incorporated Diodes Incorporated AZ23C Series part numbers are listed?
- 14 Diodes Incorporated Diodes Incorporated AZ23C Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated AZ23C Series?
- Request a quote (RFQ) for any Diodes Incorporated AZ23C Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
