AP63205WU-7
Diodes Incorporated
-40°C ~ 85°C (TA)1.1MHzTape & Reel (TR); Cut Tape (CT)
Ref. price$0.91
Lead time on requestGet quote ›
Diodes Incorporated AP63 Series
11 variants · Diodes Incorporated
About the Diodes Incorporated Diodes Incorporated AP63 Series series
The Diodes Incorporated Diodes Incorporated AP63 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common function of Step-Down, mounting type of Surface Mount and number of outputs of 1. Variants differ by case, current - output and frequency, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 13-PowerVFDFN · SOT-23-6 Thin, TSOT-23-6
- Current - output
- 2A · 3.5A
- Frequency
- 1.1MHz · 450kHz
- Operating temperature
- -40°C ~ 85°C (TA) · -40°C ~ 125°C (TA)
- Output type
- Adjustable · Fixed
- Voltage - output (Min (Fixed))
- 0.8V · 5V
Variant comparison

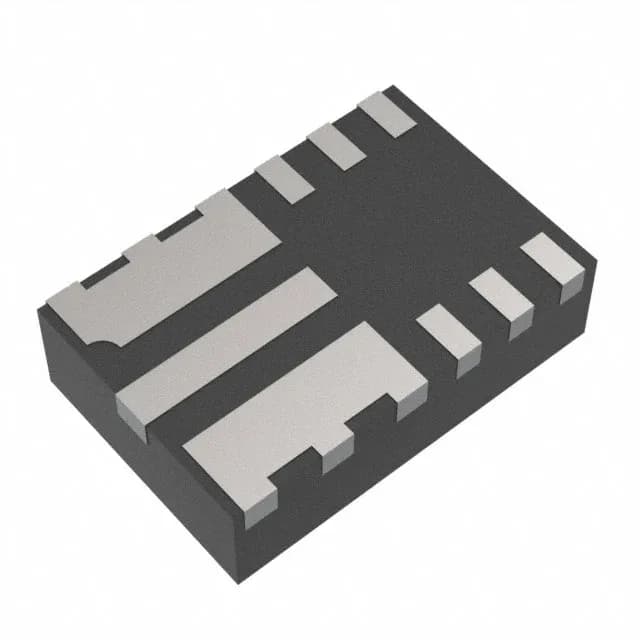

| Parameter | AP63205WU-7 | AP63356QZV-7 | AP63357DV-7 |
|---|---|---|---|
| Case | SOT-23-6 Thin, TSOT-23-6 | 13-PowerVFDFN | 13-PowerVFDFN |
| Current - output | 2A | 3.5A | 3.5A |
| Frequency | 1.1MHz | 450kHz | 450kHz |
| Operating temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Output type | Fixed | Adjustable | Adjustable |
| Voltage - output (Min (Fixed)) | 5V | 0.8V | 0.8V |
Shared specifications
- Function
- Step-Down
- Mounting type
- Surface Mount
- Number of outputs
- 1
- Output configuration
- Positive
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Synchronous rectifier
- Yes
- Topology
- Buck
- Voltage - input
- 32V
Request a quote on any Diodes Incorporated AP63 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Diodes Incorporated Diodes Incorporated AP63 Series variants differ?
- Diodes Incorporated AP63 Series part numbers differ by case, current - output, frequency and operating temperature. Use the selection guide above to pick by case.
- How many Diodes Incorporated Diodes Incorporated AP63 Series part numbers are listed?
- 11 Diodes Incorporated Diodes Incorporated AP63 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Diodes Incorporated Diodes Incorporated AP63 Series?
- Request a quote (RFQ) for any Diodes Incorporated AP63 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
