Diodes Incorporated PI5A23157ZUAEX
MPNPI5A23157ZUAEX
End of Life
ANALOGSWITCH3V-5VU-QFN1520-10T&R
$1.54488Price · pay online now

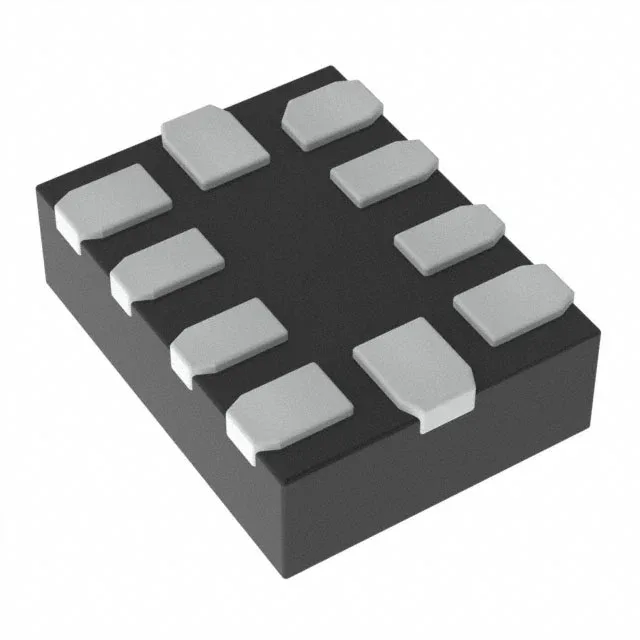

Packaging10-UFQFN
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage - supply, single (V+) | 1.65V ~ 5.5V |
| Current - leakage (IS(off)) | 1µA |
| Operating temperature | -40°C ~ 125°C |
| -3db bandwidth | 220MHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Crosstalk | -66dB @ 10MHz |
| Case | 10-UFQFN |
| Switch circuit | SPDT |
| Charge injection | 7pC |
| Number of circuits | 2 |
| On-State resistance | 15Ohm |
| Switch time (Ton, toff) | 12ns, 8ns |
| Multiplexer (Demultiplexer circuit) | 2:1 |
| Channel capacitance (CS(off), CD(off)) | 2.8pF |
| Channel-to-Channel matching (ΔRon) | 150mOhm |
