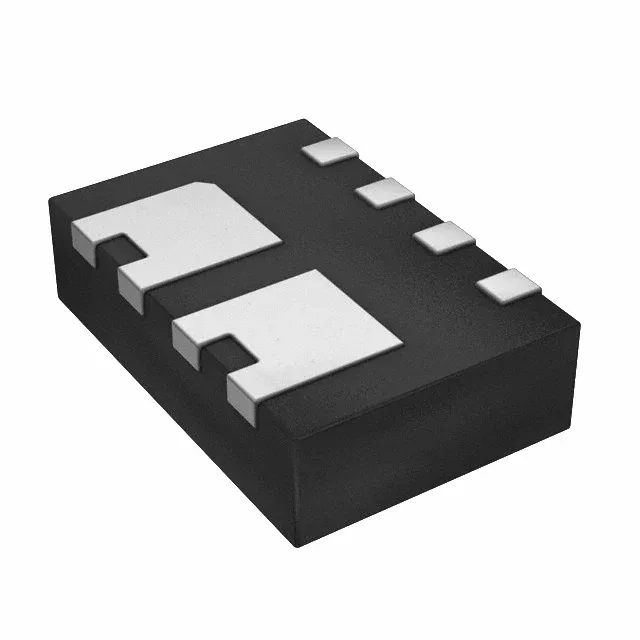

MOSFET 2N-CH 30V 5.5A 8VDFN
$0.5000Ref. price · indicative, final on quote
Packaging8-PowerVDFN
StockContact for availability
MOQ1 pcs
- 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
- Date & lot codes on quoteStated per line before you commit; label photos on request.
- MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount |
| Drain to source voltage | 30V |
| Current - continuous drain (Id) @ 25°C | 5.5A |
| Power - max | 770mW |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| Case | 8-PowerVDFN |
| Vgs(th) (Max) @ id | 2V @ 250µA |
| Rds on (Max) @ id, vgs | 35mOhm @ 4.8A, 10V |
| Gate charge (Qg) (Max) @ vgs | 9.9nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 399pF @ 15V |
