Specifications
| Parameter | Value |
|---|---|
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 12 V |
| Drive voltage (Max rds on, min rds on) | 2.5V, 4.5V |
| Current - continuous drain (Id) @ 25°C | 5.5A (Ta) |
| Power dissipation | 920mW (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Vgs | ±8V |
| Technology | MOSFET (Metal Oxide) |

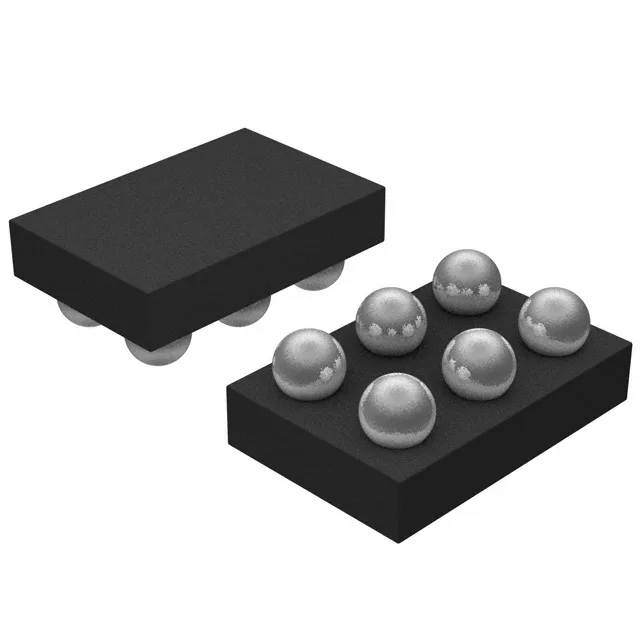

| Case | 6-UFBGA, WLBGA |
| Vgs(th) (Max) @ id | 1V @ 250µA |
| Rds on (Max) @ id, vgs | 20mOhm @ 1.5A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 4.2 nC @ 4.5 V |
| Input capacitance (Ciss) (Max) @ vds | 423 pF @ 6 V |
