Dialog Semiconductor GmbH SLG59M1 Series

23 variants · Dialog Semiconductor GmbH

About the Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG59M1 Series series

The Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG59M1 Series series groups 23 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount, operating temperature of -40°C ~ 85°C (TA) and output configuration of High Side. Variants differ by case, current - output and number of outputs, so you can match the exact case your application requires using the selection guide below.

Select a variant by

Case: 4-UFDFN · 8-UFDFN · 14-PowerUFDFN · 16-PowerUFQFN
Current - output: 1A · 2A · 4A · 4.5A
Number of outputs: 1 · 2
Output type: N-Channel · P-Channel
Rds on: 4mOhm · 15mOhm · 16mOhm · 28.5mOhm · 40mOhm · 45mOhm
Voltage - supply (Vcc (Vdd)): 1.5V ~ 5.5V · 2.5V ~ 5.5V

Variant comparison

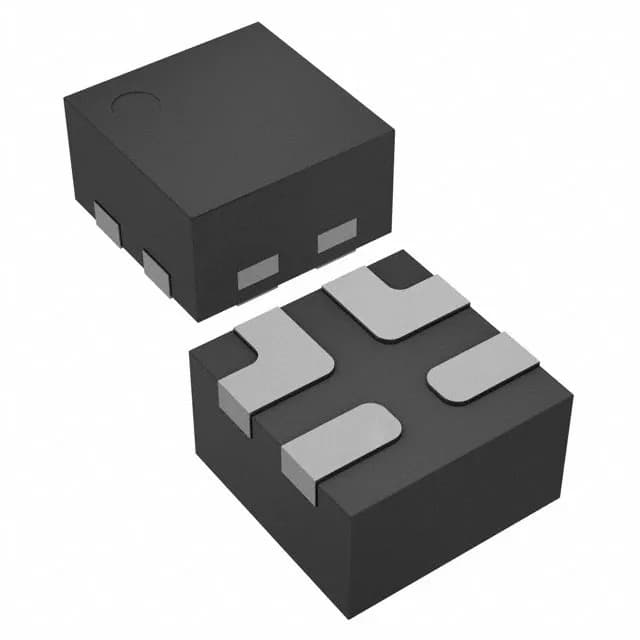

Parameter	SLG59M1440V	SLG59M1446V	SLG59M1557V	SLG59M1558V	SLG59M1639V	SLG59M1709V
Case	4-UFDFN	8-UFDFN	4-UFDFN	4-UFDFN	8-UFDFN	16-PowerUFQFN
Current - output	1A	1A	1A	1A	2A	4A
Number of outputs	1	2	1	1	2	1
Output type	N-Channel	N-Channel	P-Channel	P-Channel	P-Channel	N-Channel
Rds on	40mOhm	40mOhm	28.5mOhm	28.5mOhm	45mOhm	4mOhm
Voltage - supply (Vcc (Vdd))	2.5V ~ 5.5V	2.5V ~ 5.5V	1.5V ~ 5.5V	1.5V ~ 5.5V	1.5V ~ 5.5V	2.5V ~ 5.5V

Shared specifications

Mounting type: Surface Mount
Operating temperature: -40°C ~ 85°C (TA)
Output configuration: High Side
Package: Tape & Reel (TR); Cut Tape (CT)
Ratio - Input:Output: 1:1
Switch type: General Purpose

Request a quote on any Dialog Semiconductor GmbH SLG59M1 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG59M1 Series variants differ?: Dialog Semiconductor GmbH SLG59M1 Series part numbers differ by case, current - output, number of outputs and output type. Use the selection guide above to pick by case.
How many Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG59M1 Series part numbers are listed?: 23 Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG59M1 Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG59M1 Series?: Request a quote (RFQ) for any Dialog Semiconductor GmbH SLG59M1 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
