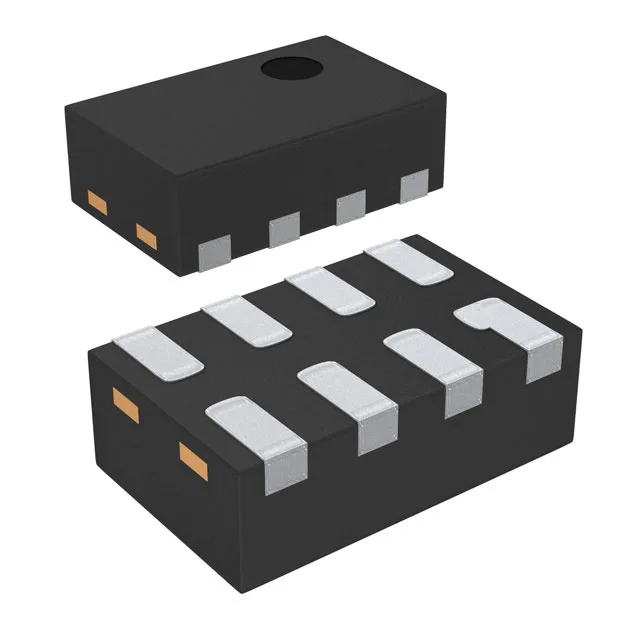

SLG59M1448V
Dialog Semiconductor GmbH
Tape & Reel (TR); Cut Tape (CT)-40°C ~ 85°C (TA)N-Channel
Ref. price$0.6
Lead time on requestGet quote
Dialog Semiconductor GmbH SLG5 Dc Dc Modules Series
8 variants · Dialog Semiconductor GmbH
About the Dialog Semiconductor GmbH SLG5 Dc Dc Modules Series
The Dialog Semiconductor GmbH SLG5 Dc Dc Modules Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common input type of CMOS, mounting of Surface Mount and output configuration of High Side. Variants differ by case, I/O channels and operating temperature, so you can match the exact case your application requires using the selection guide below. All listed Dialog Semiconductor GmbH SLG5 Dc Dc Modules Series part numbers are active and orderable.
Select a variant by
- Case
- 4-UFDFN · 8-PowerWFDFN · 8-UFDFN · 14-PowerUFDFN · 16-PowerUFQFN
- I/O channels
- 1 · 2
- Operating temperature
- -40°C ~ 85°C (TA) · -20°C ~ 70°C (TA)
- Output current
- 1A · 2A · 2.5A · 3A · 4A · 4.5A · 9A
- Rds on
- 7.3mOhm · 7.8mOhm · 14.5mOhm · 15mOhm · 16mOhm · 17mOhm · 21.3mOhm · 80mOhm
- Voltage - supply (Vcc (Vdd))
- 2.5V ~ 5.5V · 2.5V ~ 5.25V
Shared specifications
- Input type
- CMOS
- Mounting
- Surface Mount
- Output configuration
- High Side
- Output type
- N-Channel
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Ratio - Input:Output
- 1:1
- Type
- General Purpose
Variant comparison

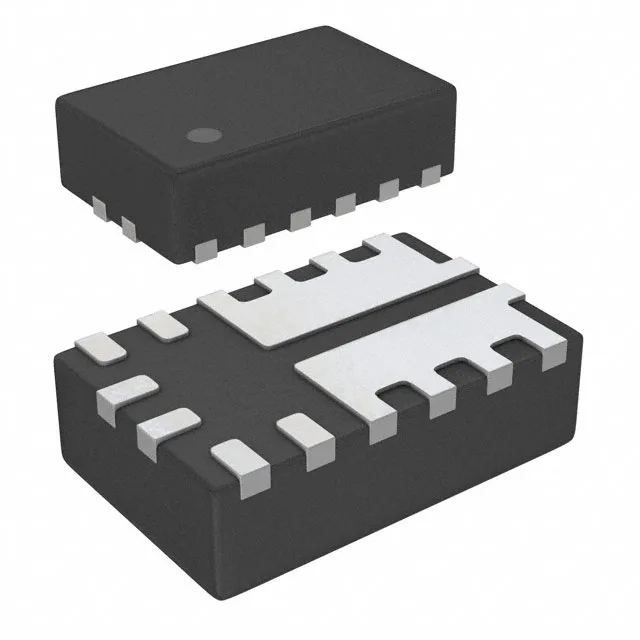

| Parameter | SLG59M1448V | SLG59M1460V | SLG59M1527V | SLG59M1568V | SLG59M1603V | SLG59M1714V |
|---|---|---|---|---|---|---|
| Case | 8-UFDFN | 8-UFDFN | 14-PowerUFDFN | 14-PowerUFDFN | 14-PowerUFDFN | 16-PowerUFQFN |
| I/O channels | 1 | 1 | 2 | 1 | 2 | 1 |
| Operating temperature | -40°C ~ 85°C (TA) | -20°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Output current | 2.5A | 2A | 4.5A | 9A | 4.5A | 4A |
| Rds on | 17mOhm | 21.3mOhm | 14.5mOhm | 7.3mOhm | 16mOhm | 15mOhm |
| Voltage - supply (Vcc (Vdd)) | 2.5V ~ 5.5V | 2.5V ~ 5.25V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
Request a quote on any Dialog Semiconductor GmbH SLG5 Dc Dc Modules Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
