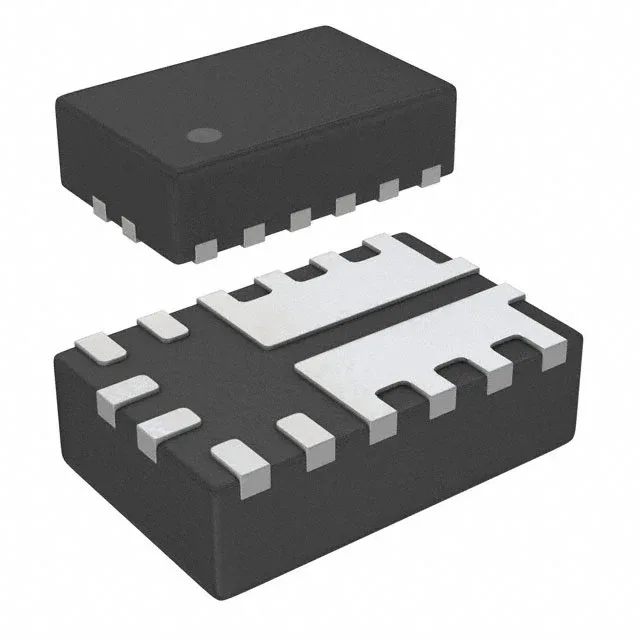

SLG59H1120V
Dialog Semiconductor GmbH
Tape & Reel (TR); Cut Tape (CT)-40°C ~ 85°C (TA)N-Channel
Ref. price$0.98
Lead time on requestGet quote
Dialog Semiconductor GmbH SLG5 Analog Series
3 variants · Dialog Semiconductor GmbH
About the Dialog Semiconductor GmbH SLG5 Analog Series
The Dialog Semiconductor GmbH SLG5 Analog Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common I/O channels of 1, input type of CMOS and mounting of Surface Mount. Variants differ by case, operating temperature and output current, so you can match the exact case your application requires using the selection guide below. All listed Dialog Semiconductor GmbH SLG5 Analog Series part numbers are active and orderable.
Select a variant by
- Case
- 8-PowerWFDFN · 16-PowerUFQFN · 18-PowerUFQFN
- Operating temperature
- -40°C ~ 85°C (TA) · -20°C ~ 70°C (TA)
- Output current
- 4A · 5A
- Rds on
- 4mOhm · 7.8mOhm · 18mOhm
- Voltage - supply (Vcc (Vdd))
- 2.5V ~ 5.5V · 4.5V ~ 13.2V
Shared specifications
- I/O channels
- 1
- Input type
- CMOS
- Mounting
- Surface Mount
- Output configuration
- High Side
- Output type
- N-Channel
- Package
- Tape & Reel (TR); Cut Tape (CT)
- Ratio - Input:Output
- 1:1
- Type
- General Purpose
Variant comparison
| Parameter | SLG59H1120V | SLG59M1456V | SLG59M1709V |
|---|---|---|---|
| Case | 18-PowerUFQFN | 8-PowerWFDFN | 16-PowerUFQFN |
| Operating temperature | -40°C ~ 85°C (TA) | -20°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Output current | 5A | 5A | 4A |
| Rds on | 18mOhm | 7.8mOhm | 4mOhm |
| Voltage - supply (Vcc (Vdd)) | 4.5V ~ 13.2V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
Request a quote on any Dialog Semiconductor GmbH SLG5 Analog Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
