SLG55021-200010V
Dialog Semiconductor GmbH
4.75V ~ 5.25V-55°C ~ 125°CTape & Reel (TR); Cut Tape (CT)
Ref. price$0.57
Lead time on requestGet quote ›
Dialog Semiconductor GmbH SLG5 Series
17 variants · Dialog Semiconductor GmbH
About the Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG5 Series series
The Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG5 Series series groups 17 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common input type of CMOS, mounting type of Surface Mount and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by case, operating temperature and current - output, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-UFDFN · 8-WFDFN Exposed Pad · 9-PowerWFDFN · 14-PowerUFDFN · 18-PowerUFQFN
- Operating temperature
- -55°C ~ 125°C · -40°C ~ 85°C (TA) · -20°C ~ 70°C (TA)
- Current - output
- 2.5A · 5A · 6A · 9A
- Rds on
- 7.3mOhm · 7.4mOhm · 13.1mOhm · 17mOhm · 18mOhm · 20mOhm
- Voltage - supply (Vcc (Vdd))
- 2.5V ~ 5.5V · 3V ~ 5.25V · 4.5V ~ 13.2V · 4.5V ~ 22V
Variant comparison

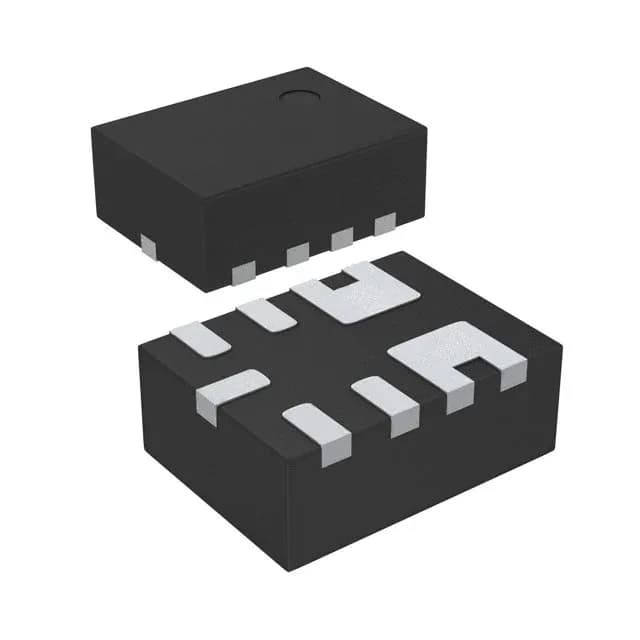

| Parameter | SLG55021-200010V | SLG59H1120V | SLG59H1128V | SLG5NT1458V | SLG5NT1477V | SLG5NT1533V |
|---|---|---|---|---|---|---|
| Case | 8-WFDFN Exposed Pad | 18-PowerUFQFN | 18-PowerUFQFN | 8-UFDFN | 9-PowerWFDFN | 8-UFDFN |
| Operating temperature | -55°C ~ 125°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Current - output | — | 5A | 5A | 2.5A | 6A | 2.5A |
| Rds on | — | 18mOhm | 13.1mOhm | 17mOhm | 7.4mOhm | 20mOhm |
| Voltage - supply (Vcc (Vdd)) | — | 4.5V ~ 13.2V | 4.5V ~ 22V | 2.5V ~ 5.5V | 3V ~ 5.25V | 2.5V ~ 5.5V |
Shared specifications
- Input type
- CMOS
- Mounting type
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
Request a quote on any Dialog Semiconductor GmbH SLG5 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG5 Series variants differ?
- Dialog Semiconductor GmbH SLG5 Series part numbers differ by case, operating temperature, current - output and rds on. Use the selection guide above to pick by case.
- How many Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG5 Series part numbers are listed?
- 17 Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG5 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Dialog Semiconductor GmbH Dialog Semiconductor GmbH SLG5 Series?
- Request a quote (RFQ) for any Dialog Semiconductor GmbH SLG5 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
