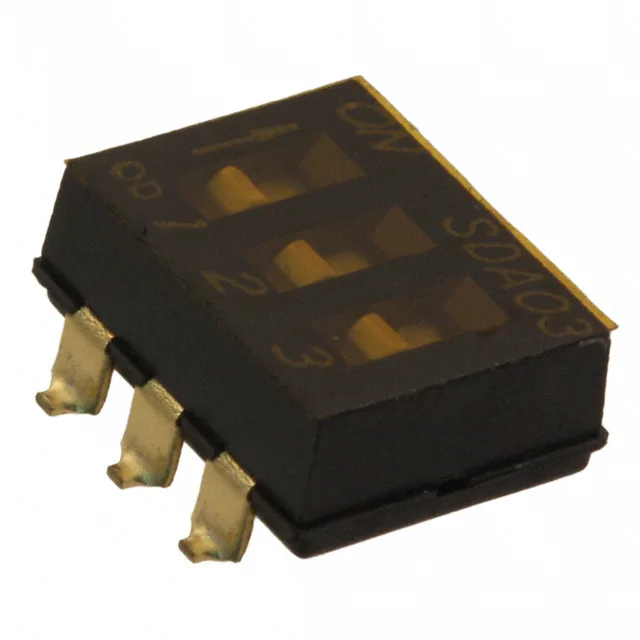

C&K SDA03H0SBR
MPNSDA03H0SBR
Active
$2.85108Price · pay online now
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SDA |
| Actuation | Slide (Standard) |
| Mounting | Surface Mount |
| Voltage rating | 24VDC |
| Current rating | 25mA |
| Operating temperature | -40°C~85°C |
| Body material | Polyphenylene Sulfide (PPS) |
| Contact material | Beryllium Copper |
| Height above board | 0.175\" (4.45mm) |
| Electrical life | 1,000 Cycles |
| Mechanical life | 1,000 Cycles |
| Pitch | 0.100\" (2.54mm), Full |
All specifications
| Parameter | Value |
|---|---|
| Length | 0.378\" (9.60mm) |
| Circuit | SPST |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Tape Seal |
| Washable | Yes |
| Actuator level | Flush, Recessed |
| Contact finish | Gold |
| Termination style | Gull Wing |
| Positions | 3 |
