Broadcom Limited CNY1 Series

5 variants · Broadcom Limited

About the Broadcom Limited Broadcom Limited CNY1 Series series

The Broadcom Limited Broadcom Limited CNY1 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common current - DC forward (If) of 60 mA, current - output (Channel) of 150mA and input type of DC. Variants differ by case, current transfer ratio and mounting type, so you can match the exact case your application requires using the selection guide below. All listed Broadcom Limited CNY1 Series part numbers are active and orderable.

Select a variant by

Case: 6-DIP (0.300\", 7.62mm) · 6-SMD, Gull Wing
Current transfer ratio: 80% @ 10mA · 200% @ 10mA · 320% @ 10mA
Mounting type: Surface Mount · Through Hole
Operating temperature: -55°C ~ 100°C · -55°C~100°C
Package: Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tube

Variant comparison

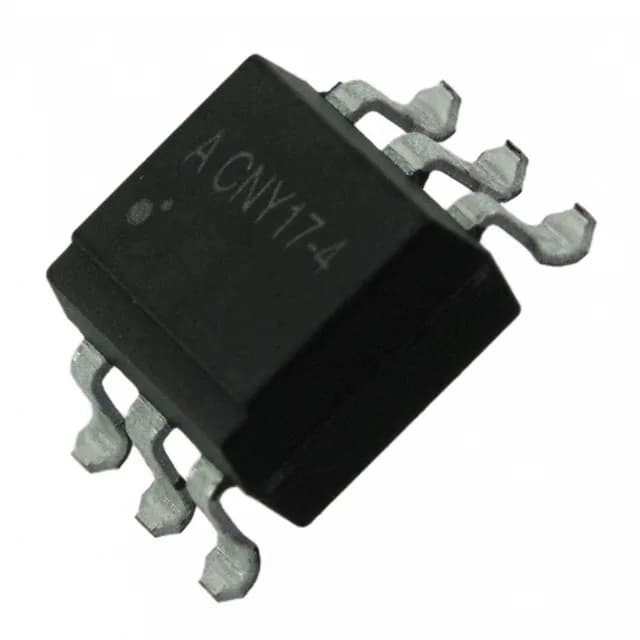

Parameter	CNY17-1-300E	CNY17-3-500E	CNY17-4-000E	CNY17-4-300E	CNY17-4-500E
Case	6-SMD, Gull Wing	6-SMD, Gull Wing	6-DIP (0.300\", 7.62mm)	6-SMD, Gull Wing	6-SMD, Gull Wing
Current transfer ratio	80% @ 10mA	200% @ 10mA	320% @ 10mA	320% @ 10mA	320% @ 10mA
Mounting type	Surface Mount	Surface Mount	Through Hole	Surface Mount	Surface Mount
Operating temperature	-55°C~100°C	-55°C ~ 100°C	-55°C~100°C	-55°C~100°C	-55°C~100°C
Package	Tube	Tape & Reel (TR) Cut Tape (CT)	Tube	Tube	Tape & Reel (TR)

Shared specifications

Current - DC forward (If): 60 mA
Current - output (Channel): 150mA
Input type: DC
Number of channels: 1
Output type: Transistor with Base
Rise (Fall time): 5µs, 5µs
Turn on (Turn off time): -
Vce saturation: 300mV
Voltage - forward (Vf): 1.4V
Voltage - isolation: 5000Vrms
Voltage - output: 70V
