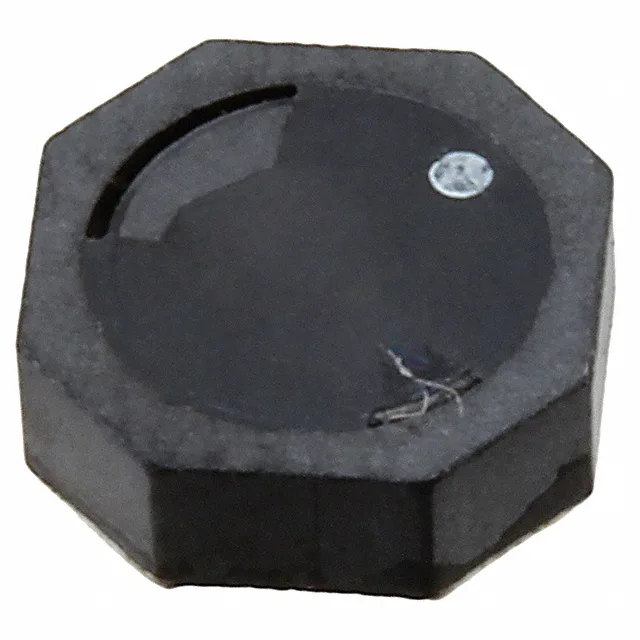

SRU6025-100Y
Bourns Inc.
SRU602510 µHTape & Reel (TR)
Ref. price$0.4408
Lead time on requestGet quote
Bourns Inc. SRU6025 Series
30 variants · Bourns Inc.
About the Bourns Inc. SRU6025 Series
The Bourns Inc. SRU6025 Series series groups 30 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of Nonstandard, height - seated of 0.110\" (2.80mm) and inductance frequency - test of 100 kHz. Variants differ by current - saturation, current rating and DC resistance, so you can match the exact current - saturation your application requires using the selection guide below. All listed Bourns Inc. SRU6025 Series part numbers are active and orderable.
Select a variant by
- Current - saturation
- 1.05A · 1.55A · 2A · 2.35A · 3.2A · 240mA · 280mA · 350mA · 480mA · 640mA · 700mA · 920mA
- Current rating
- 1 A · 1.2 A · 1.6 A · 1.8 A · 2 A · 2.7 A · 3.2 A · 3.4 A · 4 A · 420 mA · 540 mA · 700 mA
- DC resistance
- 1.25Ohm Max · 19mOhm Max · 24mOhm Max · 27mOhm Max · 35mOhm Max · 57mOhm Max · 86mOhm Max · 130mOhm Max · 180mOhm Max · 250mOhm Max · 500mOhm Max · 770mOhm Max
- Frequency - self resonant
- 4MHz · 5MHz · 7MHz · 10MHz · 12MHz · 18MHz · 22MHz · 25MHz · 42MHz · 50MHz · 65MHz · 120MHz
- Inductance
- 1.2 µH · 2.2 µH · 3.3 µH · 4.7 µH · 10 µH · 15 µH · 22 µH · 33 µH · 47 µH · 100 µH · 150 µH · 220 µH
- Operating temperature
- -40°C ~ 125°C · -40°C~125°C
- Package
- Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Q @ freq
- 8 @ 7.96MHz · 12 @ 2.52MHz · 20 @ 2.52MHz · 24 @ 2.52MHz · 30 @ 2.52MHz
Shared specifications
- Case
- Nonstandard
- Height - seated
- 0.110\" (2.80mm)
- Inductance frequency - test
- 100 kHz
- Material - core
- Ferrite
- Mounting
- Surface Mount
- Ratings
- -
- Shielding
- Shielded
- Size (Dimension)
- 0.256\" L x 0.244\" W (6.50mm x 6.20mm)
- Tolerance
- ±30%
- Type
- Drum Core, Wirewound
Variant comparison
| Parameter | SRU6025-100Y | SRU6025-101Y | SRU6025-150Y | SRU6025-151Y | SRU6025-1R2Y | SRU6025-220Y |
|---|---|---|---|---|---|---|
| Current - saturation | 1.05A | 350mA | 920mA | 280mA | 3.2A | 700mA |
| Current rating | 2 A | 700 mA | 1.8 A | 540 mA | 4 A | 1.6 A |
| DC resistance | 57mOhm Max | 500mOhm Max | 86mOhm Max | 770mOhm Max | 19mOhm Max | 130mOhm Max |
| Frequency - self resonant | 25MHz | 7MHz | 22MHz | 5MHz | 120MHz | 18MHz |
| Inductance | 10 µH | 100 µH | 15 µH | 150 µH | 1.2 µH | 22 µH |
| Operating temperature | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C ~ 125°C | -40°C~125°C |
| Package | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 8 @ 7.96MHz | 24 @ 2.52MHz | 12 @ 2.52MHz | 30 @ 2.52MHz | 8 @ 7.96MHz | 12 @ 2.52MHz |
Request a quote on any Bourns Inc. SRU6025 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
