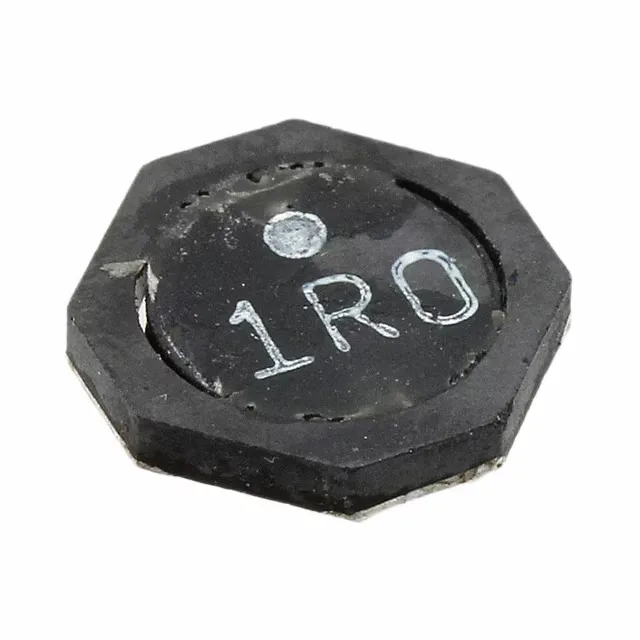

Bourns Inc. SRU6013-1R0Y
MPNSRU6013-1R0Y
Active
$0.9500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRU6013 |
| Mounting | Surface Mount |
| Current rating | 3.2 A |
| Current - saturation | 2.9A |
| Frequency - self resonant | 100MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.256\" L x 0.244\" W (6.50mm x 6.20mm) |
| Height - seated | 0.063\" (1.60mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 12 @ 7.96MHz |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 1 µH |
| Case | Nonstandard |
| DC resistance | 36mOhm Max |
