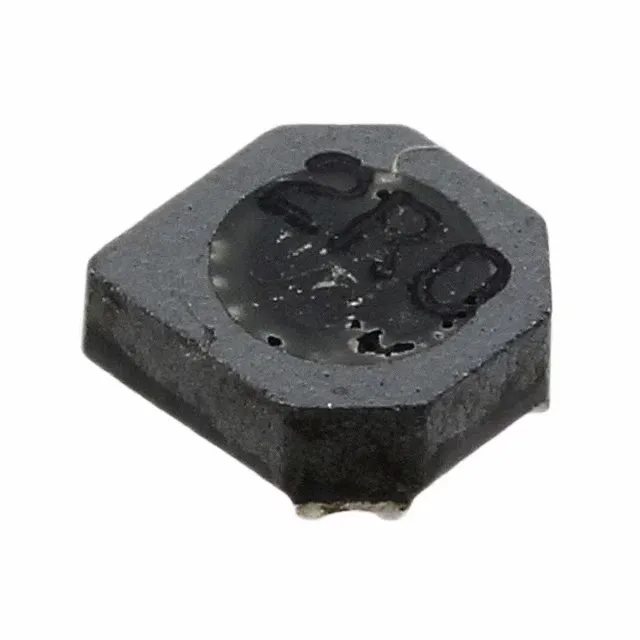

Bourns Inc. SRU3014-150Y
MPNSRU3014-150Y
Active
$0.4184Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRU3014 |
| Mounting | Surface Mount |
| Current rating | 400 mA |
| Current - saturation | 460mA |
| Frequency - self resonant | 30MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.138\" L x 0.130\" W (3.50mm x 3.30mm) |
| Height - seated | 0.063\" (1.60mm) |
| Package | Tape & Reel (TR) |
| Q @ freq | 35 @ 2.52MHz |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 15 µH |
| Case | Nonstandard |
| DC resistance | 550mOhm Max |
