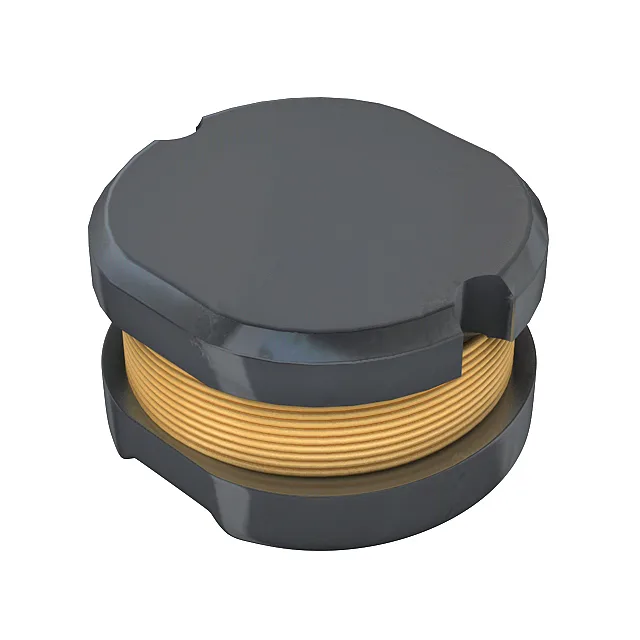

Bourns Inc. SRU2013-330Y
MPNSRU2013-330Y
Active
$0.4220Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRU2013 |
| Mounting | Surface Mount |
| Current rating | 300 mA |
| Current - saturation | 250mA |
| Frequency - self resonant | 20MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.110\" L x 0.110\" W (2.80mm x 2.80mm) |
| Height - seated | 0.059\" (1.50mm) |
| Package | Tape & Reel (TR) |
| Q @ freq | 12 @ 2.52MHz |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 33 µH |
| Case | Nonstandard |
| DC resistance | 1.82Ohm Max |
