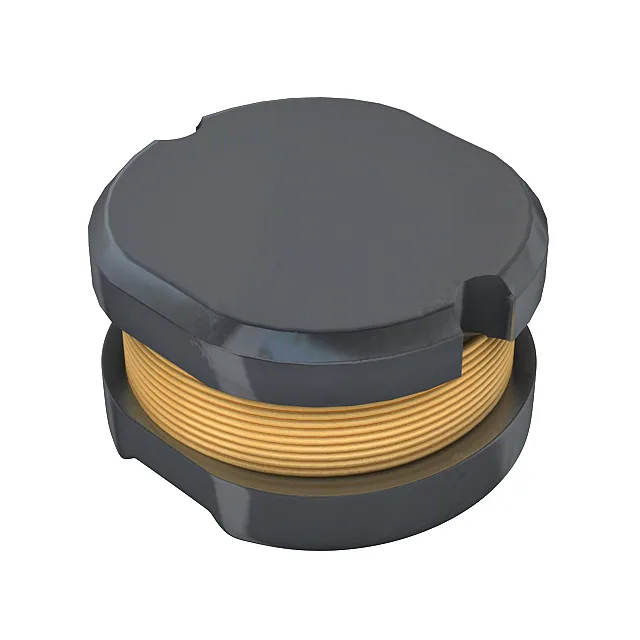

Bourns Inc. SRU2013-1R0Y
MPNSRU2013-1R0Y
Active
$0.8400Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRU2013 |
| Mounting | Surface Mount |
| Current rating | 2.2 A |
| Current - saturation | 1.6A |
| Frequency - self resonant | 180MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.110\" L x 0.110\" W (2.80mm x 2.80mm) |
| Height - seated | 0.059\" (1.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 9 @ 7.96MHz |
| Shielding | Shielded |
| Tolerance | ±30% |
| Inductance | 1 µH |
| Case | Nonstandard |
| DC resistance | 65mOhm Max |
