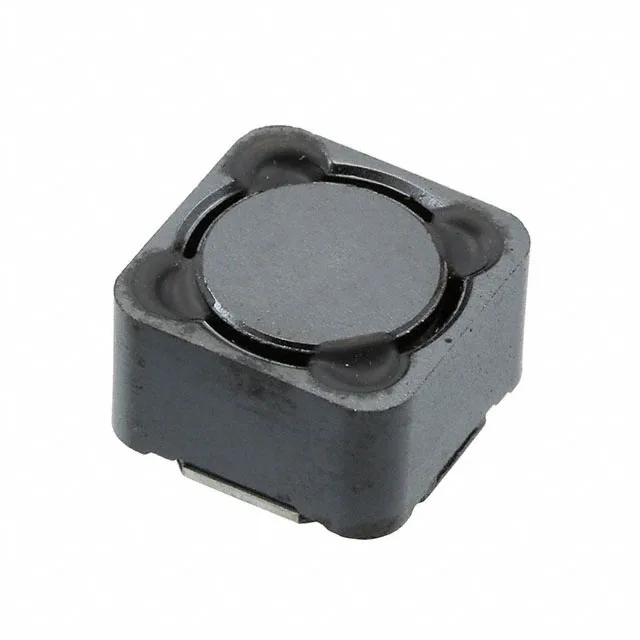

Bourns Inc. SRR1280A-221K
MPNSRR1280A-221K
Active
$1.4800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SRR1280A |
| Mounting | Surface Mount |
| Current rating | 1.6 A |
| Current - saturation | 1.7A |
| Frequency - self resonant | 3.4MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.492\" L x 0.492\" W (12.50mm x 12.50mm) |
| Height - seated | 0.315\" (8.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Ratings | AEC-Q200 |
| Q @ freq | 24 @ 796kHz |
| Shielding | Shielded |
| Tolerance | ±10% |
| Inductance | 220 µH |
| Case | Nonstandard |
| DC resistance | 400mOhm Max |
