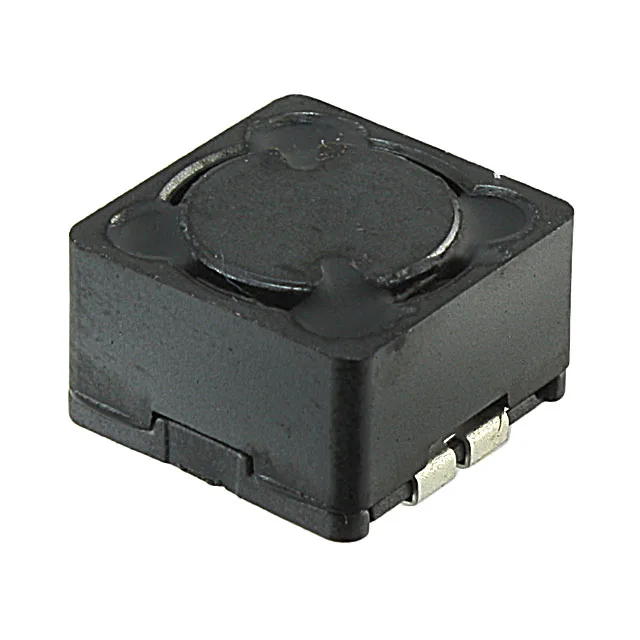

Bourns Inc. SRR1208-103KL
MPNSRR1208-103KL
Active
$1.0900Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR1208 |
| Mounting | Surface Mount |
| Current rating | 180 mA |
| Current - saturation | 200mA |
| Frequency - self resonant | 300kHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.500\" L x 0.500\" W (12.70mm x 12.70mm) |
| Height - seated | 0.335\" (8.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 24 @ 79.6kHz |
| Shielding | Shielded |
| Tolerance | ±10% |
| Inductance | 10 mH |
| Case | Nonstandard |
| DC resistance | 19.2Ohm Max |
