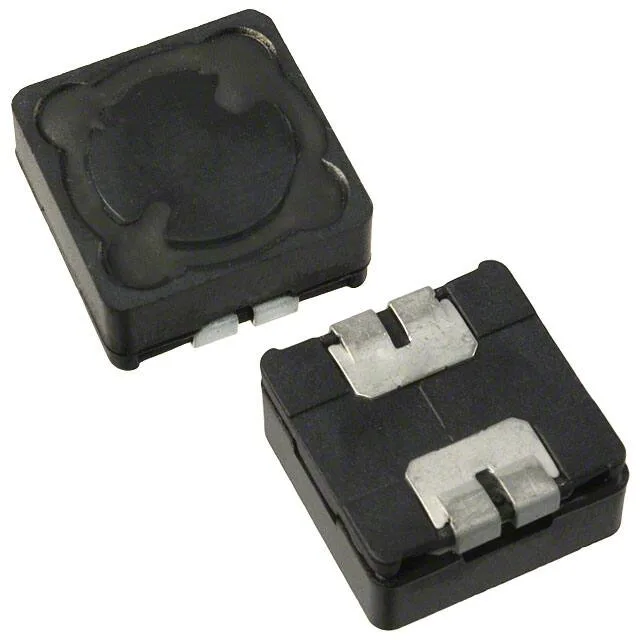

Bourns Inc. SRR1206-100ML
MPNSRR1206-100ML
Active
$0.6146Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRR1206 |
| Mounting | Surface Mount |
| Current rating | 3.3 A |
| Current - saturation | 5.7A |
| Frequency - self resonant | 18MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.500\" L x 0.500\" W (12.70mm x 12.70mm) |
| Height - seated | 0.256\" (6.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 18 @ 2.52MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 10 µH |
| Case | Nonstandard |
| DC resistance | 35mOhm Max |
