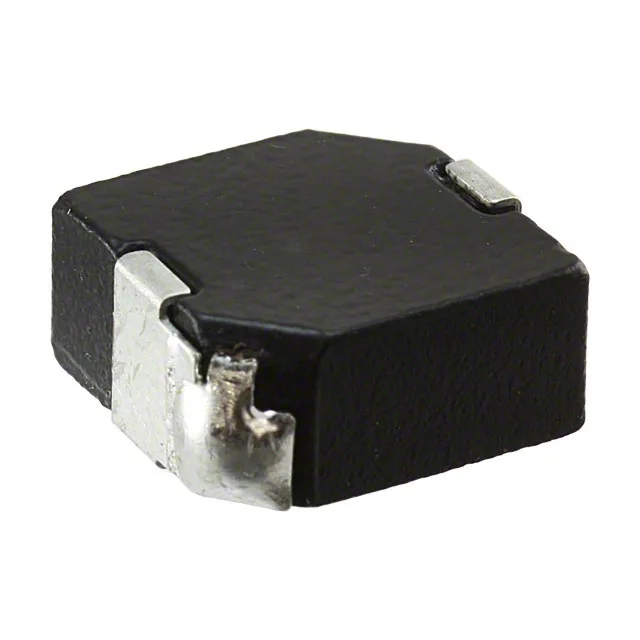

Bourns Inc. SRP1270-1R8M
MPNSRP1270-1R8M
Active
$0.8796Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRP1270 |
| Mounting | Surface Mount |
| Current rating | 24 A |
| Current - saturation | 41A |
| Frequency - self resonant | 31MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -55°C ~ 125°C |
| Material - core | Iron |
| Size (Dimension) | 0.539\" L x 0.539\" W (13.70mm x 13.70mm) |
| Height - seated | 0.276\" (7.00mm) |
| Package | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 1.8 µH |
| Case | Nonstandard |
| DC resistance | 3.2mOhm Max |
