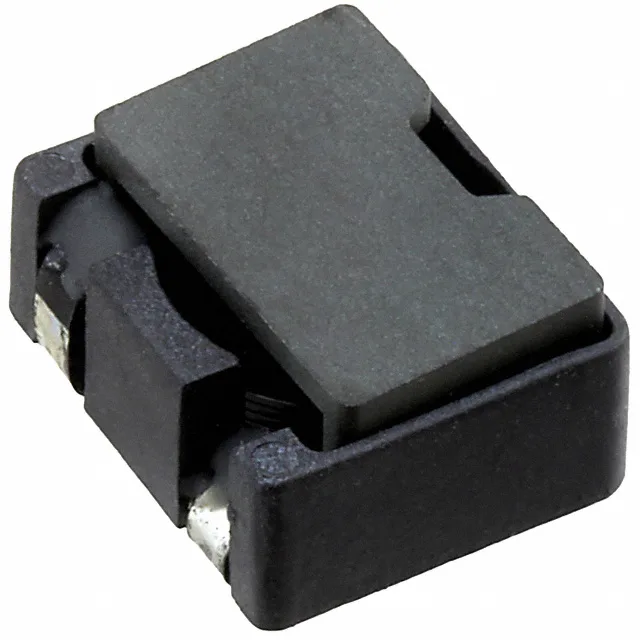

Bourns Inc. SRP1055-4R3M
MPNSRP1055-4R3M
Obsolete
$1.1211Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRP1055 |
| Mounting | Surface Mount |
| Current rating | 10 A |
| Current - saturation | 8A |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -55°C ~ 150°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.433\" L x 0.368\" W (11.00mm x 9.35mm) |
| Height - seated | 0.228\" (5.80mm) |
| Package | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 4.3 µH |
| Case | Nonstandard |
| DC resistance | 8.5mOhm Max |
