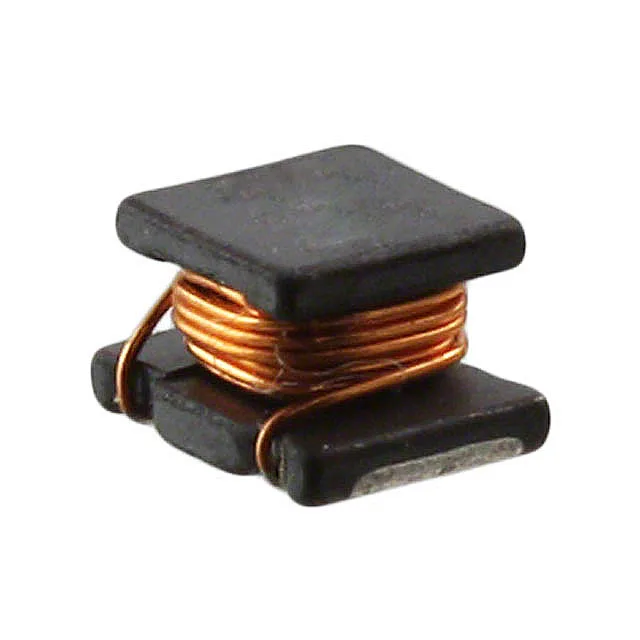

Bourns Inc. SRN6028-R90Y
MPNSRN6028-R90Y
Last Buy
$0.5300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRN6028 |
| Mounting | Surface Mount |
| Current rating | 4.6 A |
| Current - saturation | 6.7A |
| Frequency - self resonant | 105MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.236\" L x 0.236\" W (6.00mm x 6.00mm) |
| Height - seated | 0.110\" (2.80mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 12 @ 7.96MHz |
| Shielding | Semi-Shielded |
| Tolerance | ±30% |
| Inductance | 900 nH |
| Case | Nonstandard |
| DC resistance | 17mOhm Max |
