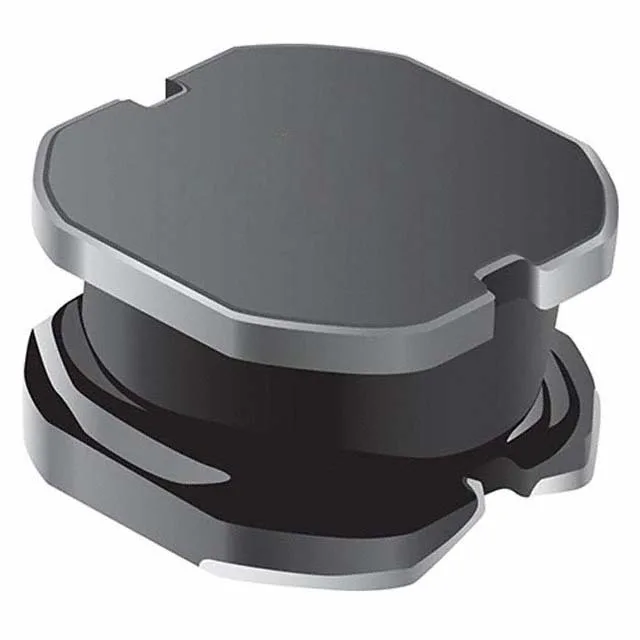

Bourns Inc. SRN1060-220M
MPNSRN1060-220M
Active
$0.9800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SRN1060 |
| Mounting | Surface Mount |
| Current rating | 3.4 A |
| Current - saturation | 3.4A |
| Frequency - self resonant | 8MHz |
| Inductance frequency - test | 100 kHz |
| Operating temperature | -40°C~125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.394\" L x 0.386\" W (10.00mm x 9.80mm) |
| Height - seated | 0.236\" (6.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Q @ freq | 20 @ 7.96MHz |
| Shielding | Semi-Shielded |
| Tolerance | ±20% |
| Inductance | 22 µH |
| Case | Nonstandard |
| DC resistance | 53mOhm Max |
