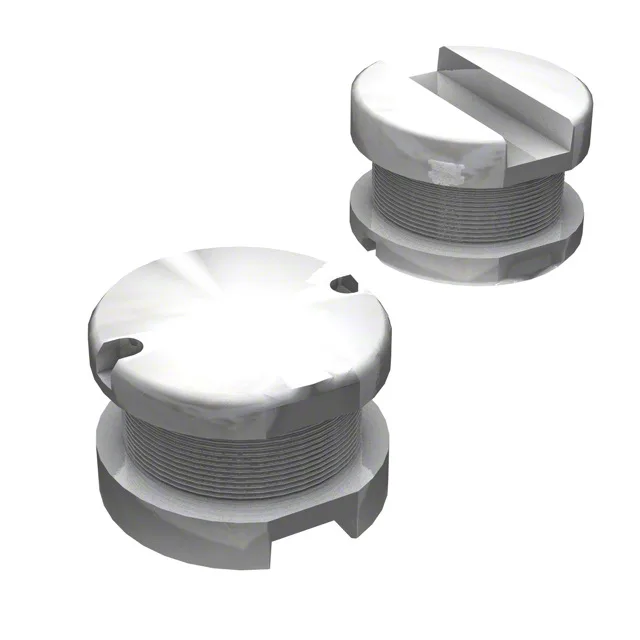

Bourns Inc. SDR0805-821KL
MPNSDR0805-821KL
Active
$0.6800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Drum Core, Wirewound |
| Series | SDR0805 |
| Mounting | Surface Mount |
| Current rating | 230 mA |
| Current - saturation | 350mA |
| Frequency - self resonant | 3MHz |
| Inductance frequency - test | 1 kHz |
| Operating temperature | -40°C ~ 125°C |
| Material - core | Ferrite |
| Size (Dimension) | 0.307\" L x 0.307\" W (7.80mm x 7.80mm) |
| Height - seated | 0.209\" (5.30mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 28 @ 796kHz |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 820 µH |
| Case | Nonstandard |
| DC resistance | 4Ohm Max |
