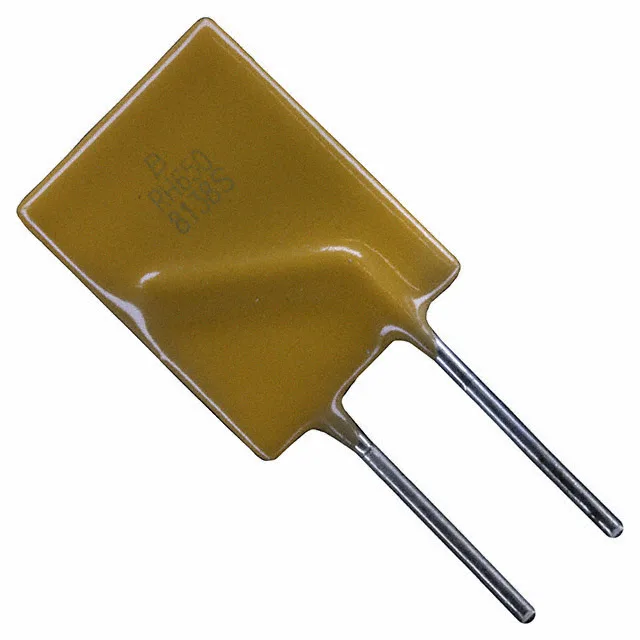

Bourns Inc. MF-RHT650-2
MPNMF-RHT650-2
Active
$0.4101Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Polymeric |
| Series | Multifuse®, MF-RHT |
| Mounting | Through Hole |
| Voltage - max | 16V |
| Current - max | 100 A |
| Current - trip | 12 A |
| Current - hold (Ih) | 6.5 A |
| Operating temperature | -40°C~125°C |
| Size (Dimension) | 0.500\" L x 0.118\" W (12.70mm x 3.00mm) |
| Height - seated | 0.874\" (22.20mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Ratings | AEC-Q200 |
| Lead spacing | 0.114\" (2.90mm) |
| Time to trip | 5.5 s |
| Case | Radial, Disc |
| Resistance - initial (Ri) | 11 mOhms |
| Resistance - post trip (R1) | 26 mOhms |
