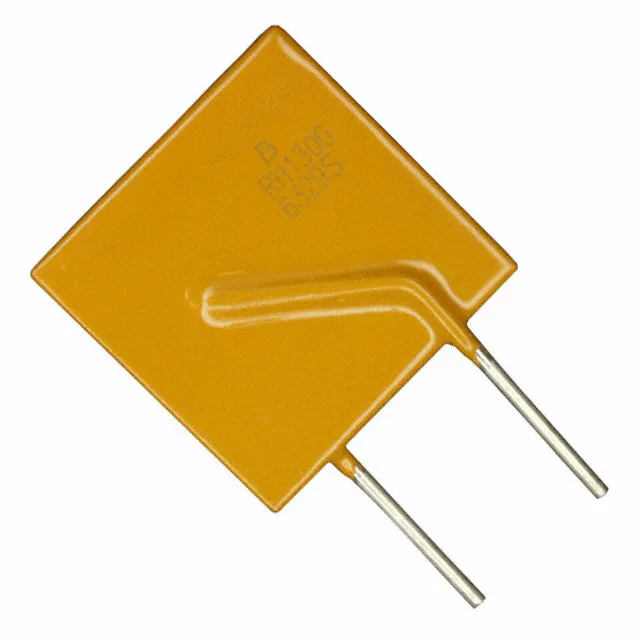

Bourns Inc. MF-RHT1300-AP
MPNMF-RHT1300-AP
Active
$0.7353Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Polymeric |
| Series | Multifuse®, MF-RHT |
| Mounting | Through Hole |
| Voltage - max | 16V |
| Current - max | 100 A |
| Current - trip | 24 A |
| Current - hold (Ih) | 13 A |
| Operating temperature | -40°C~125°C |
| Size (Dimension) | 0.925\" L x 0.142\" W (23.50mm x 3.60mm) |
| Height - seated | 1.130\" (28.70mm) |
| Package | Tape & Box (TB) |
| Ratings | AEC-Q200 |
| Lead spacing | 0.215\" (5.45mm) |
| Time to trip | 13 s |
| Case | Radial, Disc |
| Resistance - initial (Ri) | 4.1 mOhms |
| Resistance - post trip (R1) | 10 mOhms |
