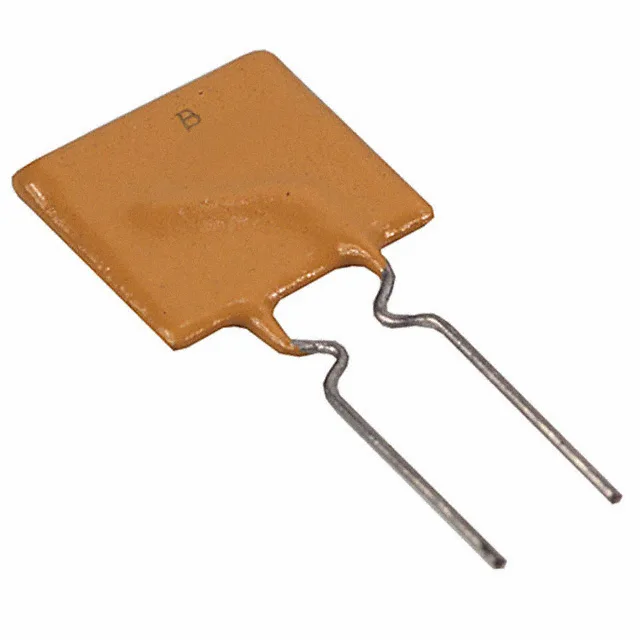

Bourns Inc. MF-R250U-2
MPNMF-R250U-2
Active
$0.3681Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Polymeric |
| Series | Multifuse®, MF-R |
| Mounting | Through Hole |
| Voltage - max | 30V |
| Current - max | 40 A |
| Current - trip | 5 A |
| Current - hold (Ih) | 2.5 A |
| Operating temperature | -40°C ~ 85°C |
| Size (Dimension) | 0.472\" L x 0.118\" W (12.00mm x 3.00mm) |
| Height - seated | 0.720\" (18.30mm) |
| Approval agency | cURus, TUV |
| Package | Tape & Reel (TR) |
| Lead spacing | 0.201\" (5.10mm) |
| Time to trip | 10.3 s |
| Case | Radial, Disc |
| Resistance - initial (Ri) | 25 mOhms |
| Resistance - post trip (R1) | 70 mOhms |
