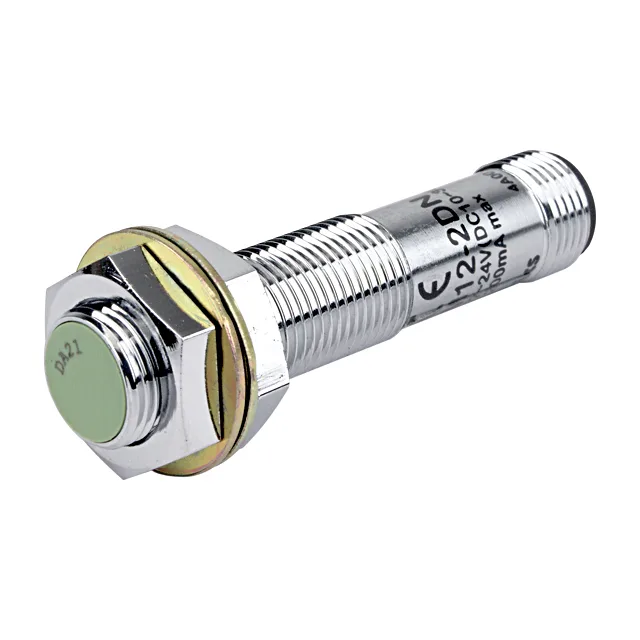

PRCM12-2DP
Autonics
≥ 1000 HzPNP-NO, 3-WirePRCM
Ref. price$46.00
Lead time on requestGet quote

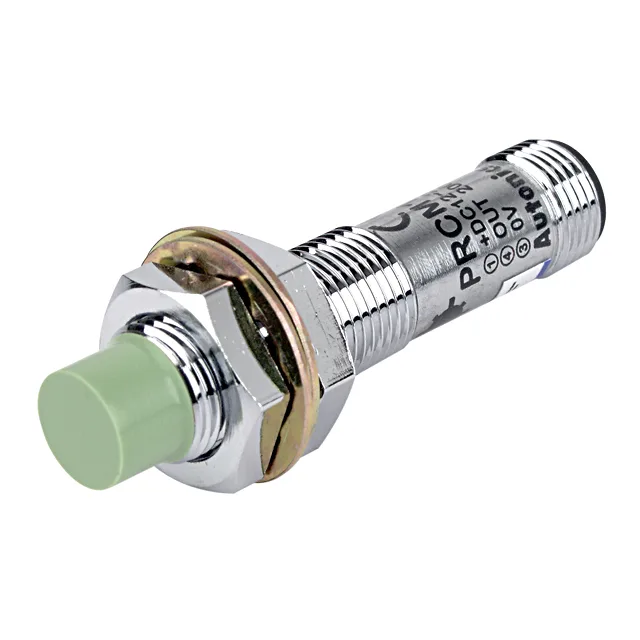

Autonics PRCM12 Series
4 variants · Autonics
About the Autonics PRCM12 Series
The Autonics PRCM12 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common enclosure_material of Nickel-Plated Brass, has_indicator of LED and IP rating of IP67. Variants differ by frequency, is_shielded and operating temperature high, so you can match the exact frequency your application requires using the selection guide below. All listed Autonics PRCM12 Series part numbers are active and orderable.
Select a variant by
- Frequency
- 500.0 · 1500.0
- Is_shielded
- Shielded · Unshielded
- Operating temperature high
- -25°C to 70°C (TA) · -25°C to 70°C(TA)
- Output signal
- NPN-NO, 3-Wire · PNP-NC, 3-Wire · PNP-NO, 3-Wire
- Sensing distance max
- 0.079 · 0.157
Shared specifications
- Enclosure_material
- Nickel-Plated Brass
- Has_indicator
- LED
- IP rating
- IP67
- Package_type
- Bag
- Sensor_type
- Inductive
- Supply voltage
- 10.0
- Terminal_type
- Connector
Variant comparison
| Parameter | PRCM12-2DP | PRCM12-4DN | PRCM12-4DP | PRCM12-4DP2 |
|---|---|---|---|---|
| Frequency | 1500.0 | 500.0 | 500.0 | 500.0 |
| Is_shielded | Shielded | Unshielded | Unshielded | Unshielded |
| Operating temperature high | -25°C to 70°C (TA) | -25°C to 70°C(TA) | -25°C to 70°C (TA) | -25°C to 70°C (TA) |
| Output signal | PNP-NO, 3-Wire | NPN-NO, 3-Wire | PNP-NO, 3-Wire | PNP-NC, 3-Wire |
| Sensing distance max | 0.079 | 0.157 | 0.157 | 0.157 |
Request a quote on any Autonics PRCM12 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
