MAX3222CUP+
Analog Devices Inc./Maxim Integrated
Tube0°C~70°CTransceiver
Ref. price$6.2100
Lead time on requestGet quote ›
Analog Devices MAX32 Series
188 variants · Analog Devices
About the Analog Devices Analog Devices MAX32 Series series
The Analog Devices Analog Devices MAX32 Series series groups 188 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common duplex of Full, mounting type of Surface Mount and number of drivers (Receivers) of 2/2. Variants differ by case, data rate and operating temperature, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 18-SOIC (0.295\", 7.50mm Width) · 20-SSOP (0.209\", 5.30mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 20-WQFN Exposed Pad
- Data rate
- 1Mbps · 120Kbps
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C · 0°C ~ 70°C · 0°C~70°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tube
- Receiver hysteresis
- 300 mV · 500 mV
Variant comparison

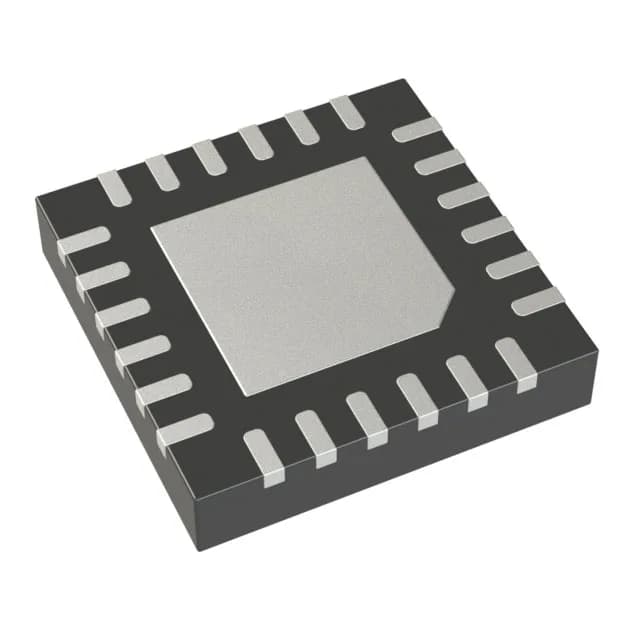

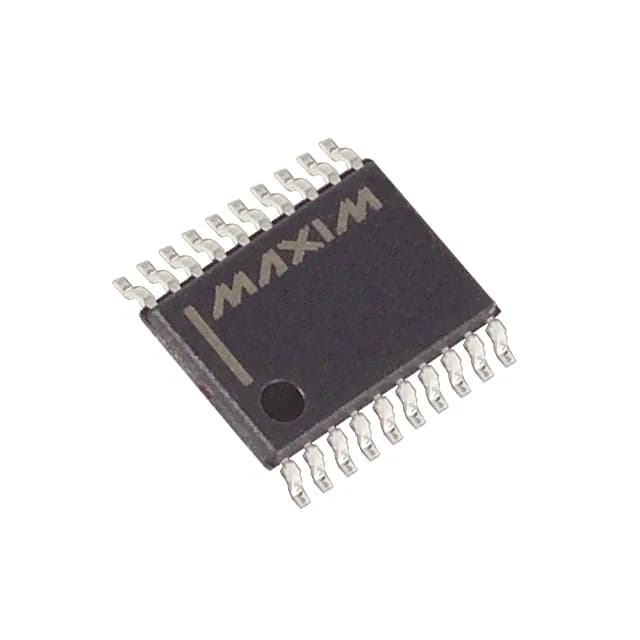

| Parameter | MAX3222CUP+ | MAX3222CUP+T | MAX3222CWN+ | MAX3222EAP+ | MAX3222ECAP+ | MAX3222ECTP+ |
|---|---|---|---|---|---|---|
| Case | 20-TSSOP (0.173\", 4.40mm Width) | 20-TSSOP (0.173\", 4.40mm Width) | 18-SOIC (0.295\", 7.50mm Width) | 20-SSOP (0.209\", 5.30mm Width) | 20-SSOP (0.209\", 5.30mm Width) | 20-WQFN Exposed Pad |
| Data rate | 120Kbps | 120Kbps | 120Kbps | 120Kbps | 1Mbps | 1Mbps |
| Operating temperature | 0°C~70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C~85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package | Tube | Tape & Reel (TR) Cut Tape (CT) | Tube | Tube | Tube | Tube |
| Receiver hysteresis | 300 mV | 300 mV | 300 mV | 300 mV | 500 mV | 500 mV |
Shared specifications
- Duplex
- Full
- Mounting type
- Surface Mount
- Number of drivers (Receivers)
- 2/2
- Protocol
- RS232
- Type
- Transceiver
- Voltage
- 3V ~ 5.5V
Request a quote on any Analog Devices MAX32 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Analog Devices Analog Devices MAX32 Series variants differ?
- Analog Devices MAX32 Series part numbers differ by case, data rate, operating temperature and package. Use the selection guide above to pick by case.
- How many Analog Devices Analog Devices MAX32 Series part numbers are listed?
- 188 Analog Devices Analog Devices MAX32 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Analog Devices Analog Devices MAX32 Series?
- Request a quote (RFQ) for any Analog Devices MAX32 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
