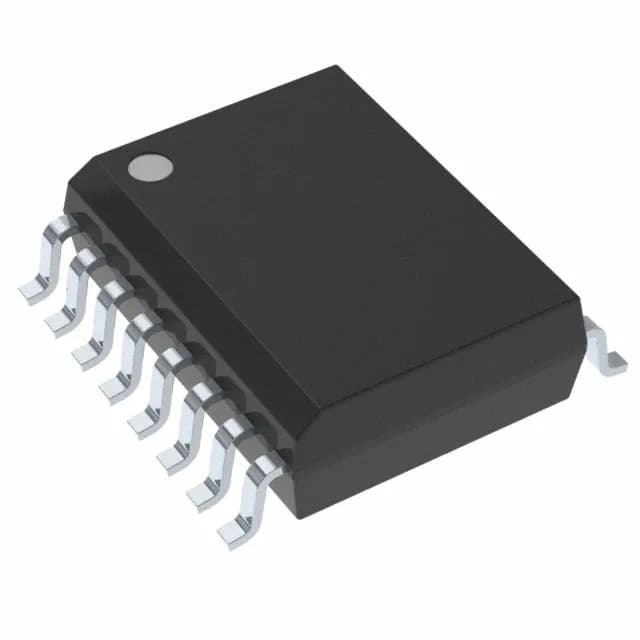

ADUM3160BRWZ-RL
Analog Devices Inc.
Tape & Reel (TR) Cut Tape (CT)-40°C ~ 105°CUSB
Ref. price$10.2200
Lead time on requestGet quote ›
Analog Devices ADUM3 Series
104 variants · Analog Devices
About the Analog Devices Analog Devices ADUM3 Series series
The Analog Devices Analog Devices ADUM3 Series series groups 104 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common common mode transient immunity of 25kV/µs, inputs - side 1/Side 2 of 1/1 and isolated power of No. Variants differ by case, channel type and data rate, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-SOIC (0.154\", 3.90mm Width) · 16-SOIC (0.295\", 7.50mm Width)
- Channel type
- Bidirectional · Unidirectional
- Data rate
- 1Mbps · 10Mbps · 12Mbps · 25Mbps
- Number of channels
- 1 · 2
- Operating temperature
- -55°C ~ 125°C · -40°C ~ 105°C · -40°C ~ 125°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tube
- Propagation delay tpLH (tpHL)
- 50ns, 50ns · 70ns, 70ns
- Pulse width distortion
- - · 3ns · 5ns
Variant comparison
| Parameter | ADUM3160BRWZ-RL | ADUM3160WBRWZ | ADUM3211ARZ | ADUM3211ARZ-RL7 | ADUM3211BRZ | ADUM3211BRZ-RL7 |
|---|---|---|---|---|---|---|
| Case | 16-SOIC (0.295\", 7.50mm Width) | 16-SOIC (0.295\", 7.50mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) | 8-SOIC (0.154\", 3.90mm Width) |
| Channel type | Bidirectional | Bidirectional | Unidirectional | Unidirectional | Unidirectional | Unidirectional |
| Data rate | 12Mbps | 12Mbps | 1Mbps | 1Mbps | 10Mbps | 10Mbps |
| Number of channels | 1 | 1 | 2 | 2 | 2 | 2 |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) | Tube | Tube | Tape & Reel (TR) Cut Tape (CT) | Tube | Tape & Reel (TR) Cut Tape (CT) |
| Propagation delay tpLH (tpHL) | 70ns, 70ns | 70ns, 70ns | 50ns, 50ns | 50ns, 50ns | 50ns, 50ns | 50ns, 50ns |
| Pulse width distortion | - | - | 5ns | 5ns | 3ns | 3ns |
Shared specifications
- Common mode transient immunity
- 25kV/µs
- Inputs - side 1/Side 2
- 1/1
- Isolated power
- No
- Mounting type
- Surface Mount
- Technology
- Magnetic Coupling
- Voltage
- 3V ~ 5.5V
- Voltage - isolation
- 2500Vrms
