AD8538AUJZ-REEL7
Analog Devices
-40°C ~ 125°CTape & Reel (TR); Cut Tape (CT)0.4V/µs
Ref. price$1.94
Lead time on requestGet quote ›
Analog Devices AD85 Series
115 variants · Analog Devices
About the Analog Devices Analog Devices AD85 Series series
The Analog Devices Analog Devices AD85 Series series groups 115 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting type of Surface Mount and package of Tape & Reel (TR); Cut Tape (CT). Variants differ by amplifier type, case and current - input bias, so you can match the exact amplifier type your application requires using the selection guide below.
Select a variant by
- Amplifier type
- General Purpose · Zero-Drift
- Case
- 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) · SOT-23-5 Thin, TSOT-23-5
- Current - input bias
- 15 pA · 80 nA
- Current - output (Channel)
- 25 mA · 35 mA
- Current - supply
- 150µA · 700µA (x2 Channels)
- Gain bandwidth product
- 5 MHz · 430 kHz
- Number of circuits
- 1 · 2
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 125°C
Variant comparison

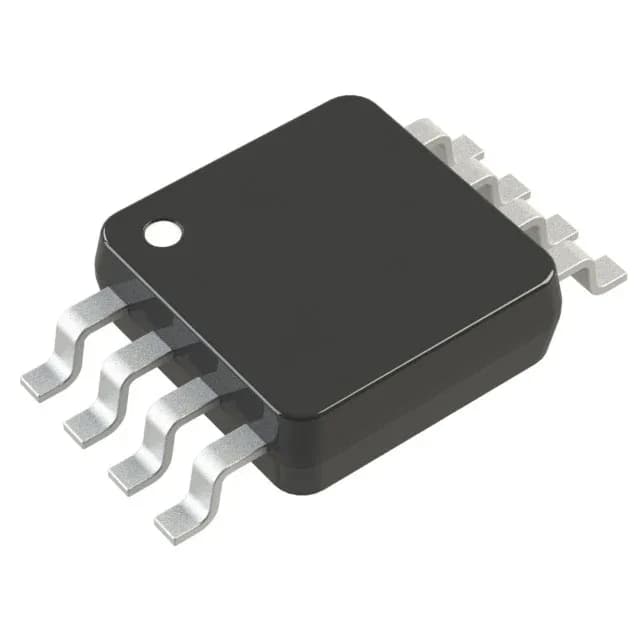

| Parameter | AD8538AUJZ-REEL7 | AD8566ARMZ-REEL |
|---|---|---|
| Amplifier type | Zero-Drift | General Purpose |
| Case | SOT-23-5 Thin, TSOT-23-5 | 8-TSSOP, 8-MSOP (0.118\", 3.00mm Width) |
| Current - input bias | 15 pA | 80 nA |
| Current - output (Channel) | 25 mA | 35 mA |
| Current - supply | 150µA | 700µA (x2 Channels) |
| Gain bandwidth product | 430 kHz | 5 MHz |
| Number of circuits | 1 | 2 |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 85°C |
Shared specifications
- Mounting type
- Surface Mount
- Package
- Tape & Reel (TR); Cut Tape (CT)
Request a quote on any Analog Devices AD85 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Analog Devices Analog Devices AD85 Series variants differ?
- Analog Devices AD85 Series part numbers differ by amplifier type, case, current - input bias and current - output (Channel). Use the selection guide above to pick by amplifier type.
- How many Analog Devices Analog Devices AD85 Series part numbers are listed?
- 115 Analog Devices Analog Devices AD85 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Analog Devices Analog Devices AD85 Series?
- Request a quote (RFQ) for any Analog Devices AD85 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
