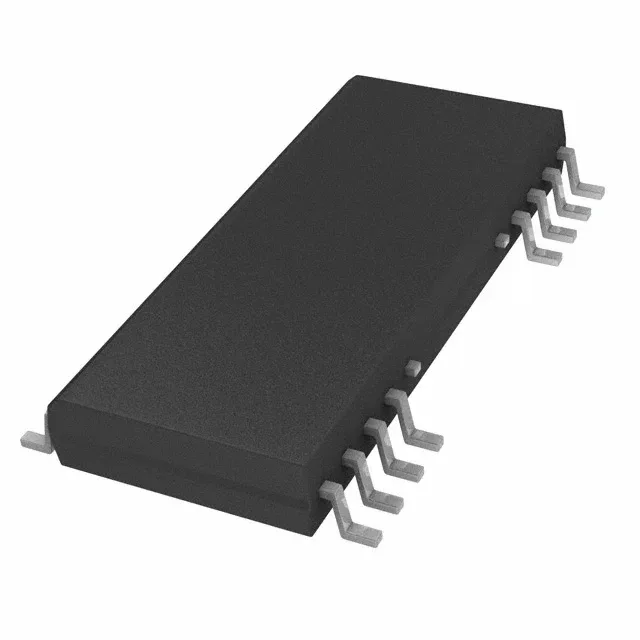

MXL1535EEWI+ Transceiver, RS422/RS485, 1Mbps, Full Duplex

MPNMXL1535EEWI+
End of Life

Analog Devices MXL1535EEWI+ RS422/RS485 transceiver, full duplex, 1 Mbps data rate, 3V to 5.5V supply, 1/1 driver/receiver, 28-SOIC package, -40°C to 85°C.

$18.37Ref. price · indicative, final on quote
Packaging28-SOIC (0.295", 7.50mm Width), 16 Leads
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MXL1535EEWI+ Technical Specifications
ParameterValue
TypeTransceiver
Mounting typeSurface Mount
Voltage3V ~ 5.5V
ProtocolRS422, RS485
Operating temperature-40°C ~ 85°C
DuplexFull
PackageTube
Data rate1Mbps
Case28-SOIC (0.295\", 7.50mm Width), 16 Leads
Receiver hysteresis30 mV
Number of drivers (Receivers)1/1

Product details

1 Mbps full-duplex RS422/RS485 transceiver

The MXL1535EEWI+ is a single-channel RS422/RS485 transceiver from Analog Devices, handling 1 Mbps data in full-duplex mode over a single twisted pair per direction. It integrates one driver and one receiver, so a single IC handles a bidirectional differential link — no external direction control needed for full-duplex operation.

Industrial temperature and receiver margin

Receiver hysteresis is 30 mV, which suppresses noise on long cable runs — a differential signal that drifts within 30 mV of the switching threshold won't cause output chatter.

Active production, ROHS3 compliant

ROHS3 compliant, so it meets the latest EU restriction levels for lead, mercury, cadmium, and the four phthalates — no exemption paperwork needed for EU-market builds.

Frequently asked questions

What is the data rate of MXL1535EEWI+?

The data rate is 1 Mbps in full-duplex mode, suitable for RS422 and RS485 links up to that speed.

Is MXL1535EEWI+ RoHS compliant?

Yes, it is ROHS3 compliant, meeting the latest EU restriction levels for hazardous substances.
