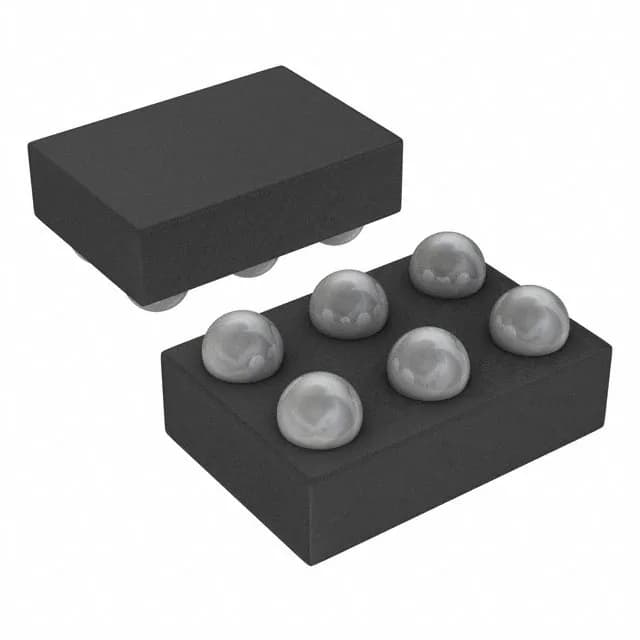

Maxim Integrated MAX9911EWT+T, General Purpose Op Amp, 1 Circuit, 200 kHz Gain Bandwidth, Rail-to-Rail Output, 4 µA Supply, 1.8 V to 5.5 V, 6-WLP (1.24x0.84 mm), -40°C to 85°C.
| Parameter | Value |
|---|---|
| Output type | Rail-to-Rail |
| Mounting type | Surface Mount |
| Amplifier type | General Purpose |
| Voltage - input offset | 200 µV |
| Voltage - supply span | 5.5 V |
| Current - supply | 4µA |
| Current - input bias | 1 pA |
| Current - output (Channel) | 15 mA |
| Operating temperature | -40°C ~ 85°C |
| Gain bandwidth product | 200 kHz |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Slew rate | 0.1V/µs |
| Case | 6-WFBGA, WLBGA |
| Number of circuits | 1 |
The MAX9911EWT+T is a single-channel, general-purpose op amp drawing 4 µA supply current with a 200 kHz gain-bandwidth product.
The MAX9911EWT+T carries an Active lifecycle status with ROHS3 compliance. No NRND or EOL flags — you can qualify it into a new BOM without worrying about a last-time-buy window.
The supply current is 4 µA per amplifier, making it suitable for battery-powered and always-on applications.
The 200 kHz gain-bandwidth product and general-purpose amplifier type indicate it is stable at unity gain, but the datasheet should be consulted for phase-margin curves under specific load conditions.
