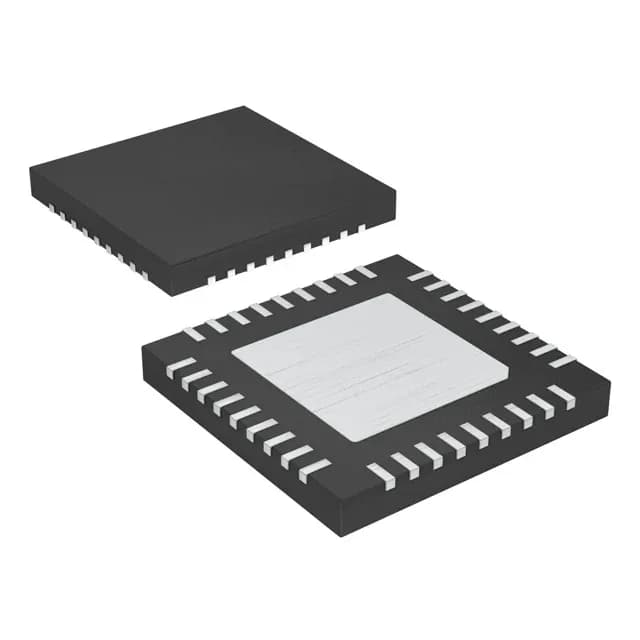

Analog Devices MAX98400AETX+ — Memory (DRAM / SRAM / Flash / EEPROM)
Analog Devices

MAX98400AETX+ Class D Stereo Amplifier, 20W x 2 @ 8Ω

MPNMAX98400AETX+
End of Life

Maxim Integrated MAX98400AETX+, Class D stereo amplifier, 20W x 2 @ 8Ω, 8V to 28V supply, 36-TQFN (6x6), -40°C to 85°C, ROHS3 compliant.

$4.61Ref. price · indicative, final on quote
MAX98400AETX+ datasheet
Packaging36-WFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX98400AETX+ Technical Specifications
ParameterValue
TypeClass D
Output type2-Channel (Stereo)
Mounting typeSurface Mount
Voltage8V ~ 28V
Max output power x channels @ load20W x 2 @ 8Ohm
Operating temperature-40°C ~ 85°C (TA)
PackageTube
FeaturesDepop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Case36-WFQFN Exposed Pad

Product details

What this Class D amp brings to the board

The Maxim Integrated MAX98400AETX+ is a 2-channel (stereo) Class D audio amplifier rated for 20W per channel into an 8Ω load. It runs on an 8V to 28V supply rail, which gives you flexibility across 12V automotive audio, 24V industrial PA systems, and 18V portable battery-powered speakers. The 36-TQFN (6x6) package with exposed pad keeps the heat managed without a big heatsink — useful when board space is tight.

Lifecycle and sourcing reality

The MAX98400AETX+ is listed as Active in production — no last-time-buy clock ticking, no EOL notice to worry about for new designs. ROHS3 compliant, so it passes the environmental specs for EU and global markets. Sourced through independent distribution; availability and current pricing confirmed at quote time against an RFQ.

Frequently asked questions

What is the output power per channel of MAX98400AETX+?

20W per channel into an 8Ω load, stereo (2-channel).

What package does MAX98400AETX+ come in?

36-TQFN (6x6) with exposed pad, surface-mount.

What are the differences between MAX98400AETX+ and MAX98300?

The MAX98400AETX+ delivers 20W x 2 @ 8Ω, while the MAX98300 is a lower-power mono Class D amp typically used for portable speakers. The MAX98400AETX+ also includes differential inputs and a wider 8V to 28V supply range, making it better suited for automotive and industrial audio.
