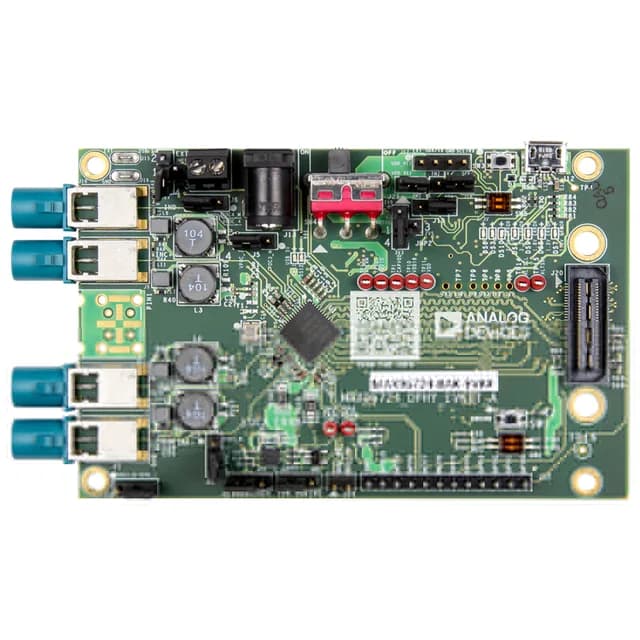

Analog Devices MAX96724FGTN/V+ — DC-DC Power Modules
Analog Devices

MAX96724FGTN/V+ GMSL2/1 Deserializer, AEC-Q100, 6Gbps

MPNMAX96724FGTN/V+
End of Life

Analog Devices MAX96724FGTN/V+, Automotive AEC-Q100, GMSL2/1 Tunneling Quad Deserializer, 6Gbps data rate, 4 inputs, 2 CSI-2 MIPI outputs, 56-WFQFN Exposed Pad, -40°C to 105°C.

$25.98Ref. price · indicative, final on quote
MAX96724FGTN/V+ datasheet
Packaging56-WFQFN Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX96724FGTN/V+ Technical Specifications
ParameterValue
Input typeGMSL
Output typeCSI-2, MIPI
Mounting typeSurface Mount
Voltage0.95V ~ 1.26V, 1.7V ~ 1.9V, 1.7V ~ 3.6V
Number of inputs4
Number of outputs2
Operating temperature-40°C ~ 105°C (TA)
GradeAutomotive
PackageStrip
FunctionDeserializer
Data rate6Gbps
QualificationAEC-Q100
Case56-WFQFN Exposed Pad

Product details

Quad GMSL deserializer with AEC-Q100 traceability

The Analog Devices MAX96724FGTN/V+ is a GMSL2/1 tunneling quad deserializer in a 56-TQFN (8x8) package, designed to receive up to four GMSL serial input streams and output two CSI-2 MIPI lanes at a serial data rate of 6Gbps.

6Gbps serial link and supply rails

The deserializer accepts four GMSL inputs and deserializes them into two MIPI CSI-2 output ports. The 6Gbps per-link data rate supports 1080p60 or multi-megapixel cameras over a single coax or STP cable. Supply voltage spans three domains: 0.95V to 1.26V for the core, 1.7V to 1.9V for the MIPI I/O, and 1.7V to 3.6V for the auxiliary interface — each rail needs its own decoupling plan on the 56-WFQFN exposed-pad footprint.

Active lifecycle and automotive qualification

AEC-Q100 qualification is confirmed, which means the part has passed the stress tests required for automotive-grade ICs — the OEM auditor will want the PPAP documentation.

Frequently asked questions

Is MAX96724FGTN/V+ AEC-Q100 qualified?

Yes, the part is AEC-Q100 qualified with an automotive grade rating.

What is the closest pin-compatible alternative to MAX96724FGTN/V+?

The part is part of Analog Devices' GMSL2/1 deserializer family; for a cross-reference, contact the distributor with the specific application requirements.
