Analog Devices MAX9268GCM/V+ — Discrete Semiconductors
Analog Devices

MAX9268GCM/V+ GMSL Deserializer, 2.5 Gbps, AEC-Q100

MPNMAX9268GCM/V+
End of Life

Analog Devices MAX9268GCM/V+ GMSL deserializer, 2.5 Gbps data rate, 1 CML input to 5 LVDS outputs, AEC-Q100 automotive grade, -40°C to +105°C, 48-TQFP exposed pad.

$14.04Ref. price · indicative, final on quote
MAX9268GCM/V+ datasheet

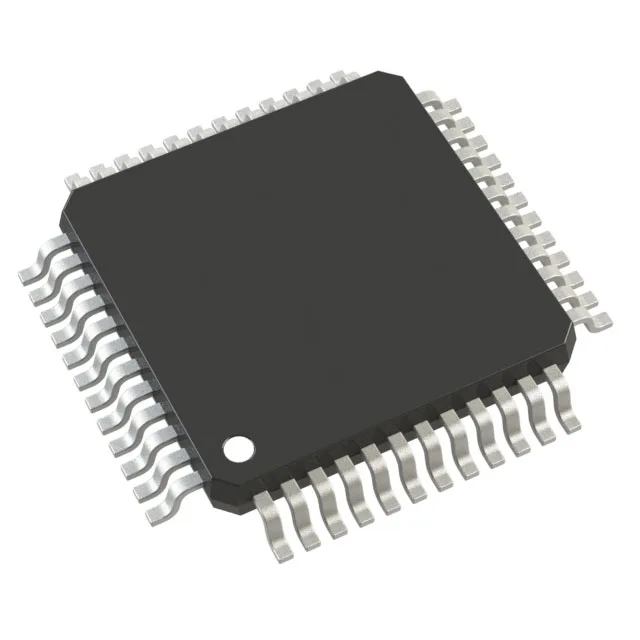

Packaging48-TQFP Exposed Pad
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX9268GCM/V+ Technical Specifications
ParameterValue
Input typeCML
Output typeLVDS
Mounting typeSurface Mount
Voltage1.7V ~ 3.6V
Number of inputs1
Number of outputs5
Operating temperature-40°C ~ 105°C (TA)
GradeAutomotive
PackageTray
FunctionDeserializer
Data rate2.5Gbps
QualificationAEC-Q100
Case48-TQFP Exposed Pad

Product details

2.5 Gbps serial link for automotive video backbones

The MAX9268GCM/V+ is a GMSL deserializer that accepts a single CML serial input at up to 2.5 Gbps and fans it out to five LVDS parallel outputs — the data rate defines the video resolution and frame rate the link can carry over a single coax or STP cable. The 105°C ceiling is above the standard 85°C industrial limit, so the derating curve for the junction temperature must be checked against the actual thermal resistance of the 48-TQFP exposed pad package.

Package and board-fit: the exposed paddle is not optional

48-TQFP exposed pad, 7x7 mm body. The pad pattern in the layout guide should match the 7x7 mm land, not the package body outline. The 1.7 V floor allows operation from a deeply discharged automotive battery during cold crank.

Frequently asked questions

What package does MAX9268GCM/V+ come in?

48-TQFP with exposed pad, 7x7 mm body.
