Analog Devices MAX8869EUE25+ — Signal Isolation
Analog Devices

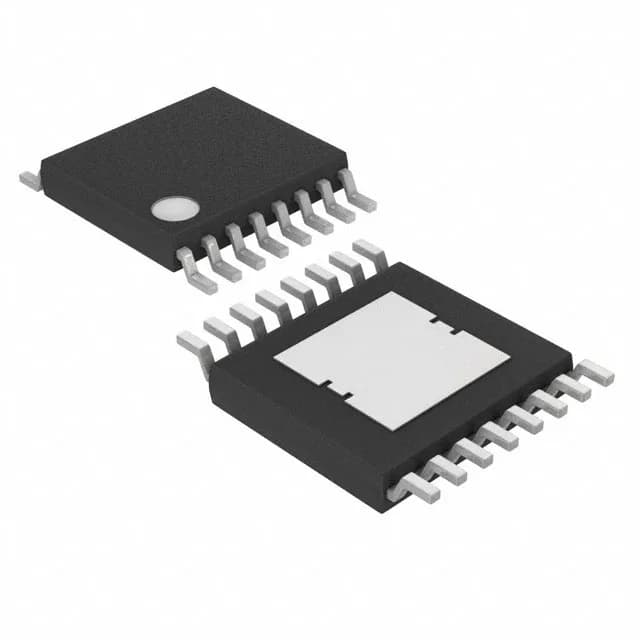

MAX8869EUE25+ LDO Regulator, 1A, 16-TSSOP-EP, 54dB PSRR

MPNMAX8869EUE25+
End of Life

Maxim MAX8869EUE25+, 1A positive adjustable LDO regulator, 16-TSSOP-EP package, 54dB PSRR at 100kHz, 2.5 mA max supply current, -40°C to 85°C operating temperature.

$6.78Ref. price · indicative, final on quote
MAX8869EUE25+ datasheet
Packaging16-TSSOP (0.173", 4.40mm Width) Exposed Pad
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX8869EUE25+ Technical Specifications
ParameterValue
Output typeAdjustable (Fixed)
Mounting typeSurface Mount
Voltage - input5.5V
Voltage - output5V
Voltage - output (Min (Fixed))0.8V (2.5V)
Current - output1A
Current - supply2.5 mA
Current - quiescent2 mA
Operating temperature-40°C ~ 85°C (TA)
PSRR54dB (100kHz)
PackageTube
Case16-TSSOP (0.173\", 4.40mm Width) Exposed Pad
Control featuresEnable, Reset, Soft Start
Protection featuresOver Current, Over Temperature, Short Circuit
Number of regulators1
Output configurationPositive

Product details

Output voltage range and fixed option

The part is listed as Adjustable (Fixed), meaning the adjustable version can be set with external resistors from 0.8 V up to 5 V, while the MAX8869EUE25+ variant is factory-trimmed to 2.5 V output.

Protection and supply current

Built-in Over Current, Over Temperature, and Short Circuit protection means the part can survive a momentary output short without latching up or failing. Quiescent current is 2 mA typical, max supply current 2.5 mA.

Lifecycle and sourcing

Lifecycle status is Active per the manufacturer, with ROHS3 compliance. The part is available through independent distribution; we source and quote it to order against an RFQ, with current pricing and availability confirmed at quote time.

Frequently asked questions

What is the PSRR of MAX8869EUE25+ at 100 kHz?

54 dB at 100 kHz — strong mid-band rejection for cleaning up switching-regulator noise on a 1 A rail.

What is the closest pin-compatible alternative to MAX8869EUE25+?

Within the same family, the adjustable MAX8869EUEUA+ is pin-compatible in the 16-TSSOP-EP package, offering a resistor-programmable output instead of the fixed 2.5 V.
