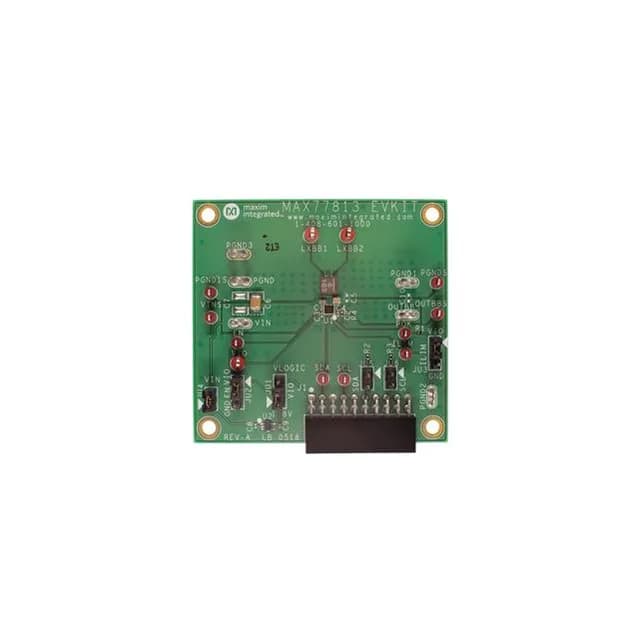

Analog Devices MAX77813EWP+T — DC-DC Power Modules
Analog Devices

MAX77813EWP+T Buck-Boost Regulator, Active

MPNMAX77813EWP+T
End of Life

Analog Devices MAX77813EWP+T, Buck-Boost Regulator, Step-Down and Step-Up/Step-Down Topology, Tape & Reel (TR) and Cut Tape (CT) Packaging, ROHS3 Compliant, Active Lifecycle.

$2.89Ref. price · indicative, final on quote
MAX77813EWP+T datasheet
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX77813EWP+T Technical Specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FunctionStep-Down, Step-Up/Step-Down
TopologyBuck, Boost

Product details

Buck-boost regulator for battery-powered rail generation

The MAX77813EWP+T is a buck-boost switching regulator from Analog Devices that handles both step-down and step-up/step-down conversion. That means it can regulate an output voltage whether the input is higher, lower, or equal to the output — a common requirement in battery-powered equipment where the cell voltage decays below the regulated rail over discharge. The part uses buck and boost topologies internally to cover that range without a separate boost stage.

Active lifecycle and ROHS3 compliance — no near-term LTB risk

It is also ROHS3 compliant, meeting the latest EU hazardous-substance restrictions for lead, mercury, cadmium, and the four phthalates. For a BOM line that needs a multi-chemistry battery regulator, this part is a safe choice for new designs and ongoing production.

Packaging and procurement — Tape & Reel or Cut Tape

The MAX77813EWP+T is offered in Tape & Reel (TR) and Cut Tape (CT) packaging options. Tape & Reel suits automated pick-and-place assembly lines; Cut Tape is convenient for prototyping and low-volume builds.

Frequently asked questions

What is MAX77813EWP+T's function and topology?

The MAX77813EWP+T is a buck-boost regulator capable of step-down and step-up/step-down conversion. It uses buck and boost topologies to regulate an output voltage when the input is above, below, or equal to the output.

What packaging options are available for MAX77813EWP+T?

The MAX77813EWP+T is available in Tape & Reel (TR) for automated assembly and Cut Tape (CT) for prototyping and low-volume orders.
