20 A quad-phase processor-core supply
The MAX77812CEWB+T: The 2 MHz switching frequency lets the designer use small inductors and ceramic output capacitors, keeping the total solution footprint tight around the 64-WLP (3.41 x 3.37 mm) package. The positive-output configuration and absence of a synchronous rectifier mean the designer provides the low-side FET and its bootstrap circuit externally.
WLP package and board-level integration

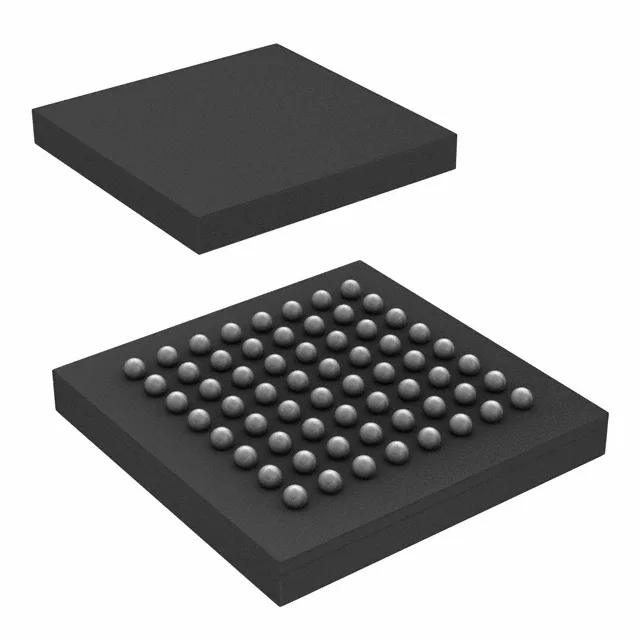

Housed in a 64-WFBGA, WLBGA (Wafer-Level Package), the MAX77812CEWB+T measures 3.41 x 3.37 mm. Surface-mount assembly with a standard reflow profile is expected. For designs that need AEC-Q100 qualification, a different part from the same family would be required.
Active lifecycle and compliance
Analog Devices lists the MAX77812CEWB+T as Active in production. The part is ROHS3 compliant.
