What it is and where it fits
The MAX6581TG9E+ is a digital temperature sensor from Maxim Integrated that monitors both its own die temperature and one or more remote diode-connected transistors. It talks over I²C or SMBus, so it hangs directly on a microcontroller's two-wire bus without extra glue. The local channel gives 8-bit resolution; the remote channel steps up to 11-bit for finer granularity on distant sensors. Accuracy is ±1.5°C on the local reading and ±3.5°C on the remote side — enough for thermal management in industrial controllers, server racks, or power supplies where you need to track hot spots across a board.
Supply and temperature range
Supply voltage runs from 3V to 3.6V — a clean 3.3V rail is the natural fit. If your rail sags below 3V the part stops working, so watch the regulator tolerance on a shared bus. The operating temperature covers -40°C to 125°C, which puts it in the industrial and under-hood automotive class, not just a bench-top part. The remote sensor input can read a diode as cold as -64°C and as hot as 150°C, which matters if you are monitoring a power transistor case or a motor winding that runs above the controller's own ambient.
Package and mounting

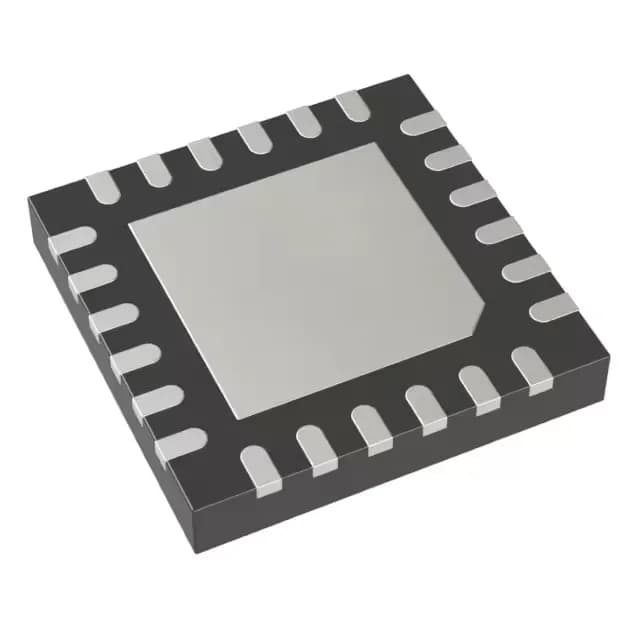

It comes in a 24-lead WFQFN with an exposed pad — 4x4 mm body, surface mount. The exposed pad needs a thermal land on the PCB and a via stitch to a ground plane if you are pulling more than a few mA. No lab bench required for the swap, but the QFN footprint means a hot-air station or reflow oven; not a hand-solder job in the field unless you have a fine-tip iron and steady hands. The shipping medium is Tube, so if your pick-and-place line expects Tape & Reel, order the T&R suffix variant instead.
Features and compliance
The part includes an output switch, programmable temperature limits, and a standby mode — useful for waking up a system only when a threshold is crossed. It is ROHS3 compliant, so no conflict with EU or California RoHS requirements.
