Analog Devices MAX5440EAG+ Volume Control IC, Pushbutton Interface, 2 Channels, -90dB Attenuation, 2.7V to 5.5V Supply, 24-SSOP Package, Tube.
| Parameter | Value |
|---|---|
| Mounting type | Surface Mount |
| Voltage | 2.7V ~ 5.5V |
| Interface | Pushbutton |
| Operating temperature | -40°C ~ 85°C (TA) |
| Package | Tube |
| Function | Volume Control |
| Applications | Consumer Audio |
| Case | 24-SSOP (0.209\", 5.30mm Width) |
| Specifications | -90dB |
| Number of channels | 2 |
The Analog Devices MAX5440EAG+ is a 2-channel volume control IC designed for consumer audio applications, controlled via a pushbutton interface. It provides a specified attenuation range of -90dB, allowing the output level to be dialed down to mute from the full-scale reference.

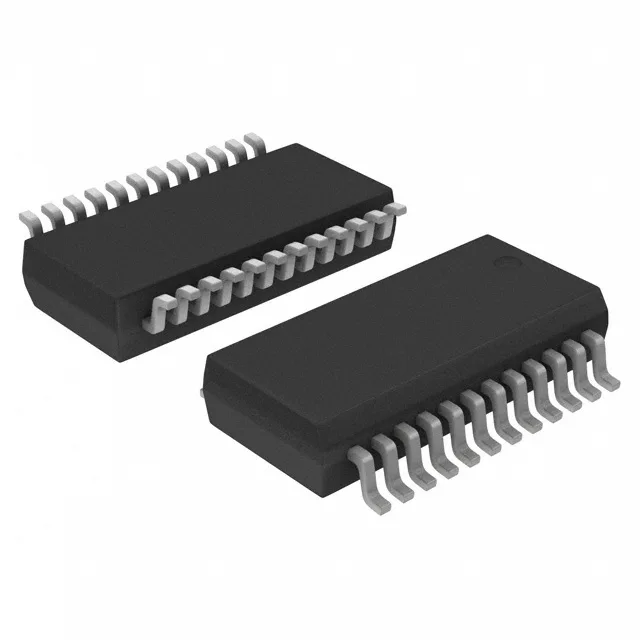

Housed in a 24-SSOP (0.209", 5.30mm Width) surface-mount package, the MAX5440EAG+ is supplied in a tube.
Submit an RFQ for the MAX5440EAG+ through this listing. Pricing and availability are confirmed at quote time based on the requested quantity and current market conditions.
The MAX5440EAG+ is a 2-channel volume control IC for consumer audio applications. It uses a pushbutton interface to adjust the audio level over a -90dB attenuation range, making it suitable for preamplifiers, mixing consoles, and powered speakers.
