What this 14-bit DAC actually does
The Maxim Integrated MAX5215GUA+T is a single-channel 14-bit digital-to-analog converter with a buffered voltage output, built around an R-2R ladder architecture. It communicates over an I²C serial interface, making it a clean fit for space-constrained mixed-signal boards where you need a precise analog voltage from a microcontroller's two-wire bus. The output settles to within 1 LSB in 18 µs typical, which is fast enough for closed-loop setpoint control or slow waveform generation but not for video-rate signals. The R-2R topology gives inherently monotonic performance, and the DNL of ±0.1 LSB guarantees no missing codes across the full 14-bit range — important when you are counting on every step to be there.
Temperature grade and where it fits

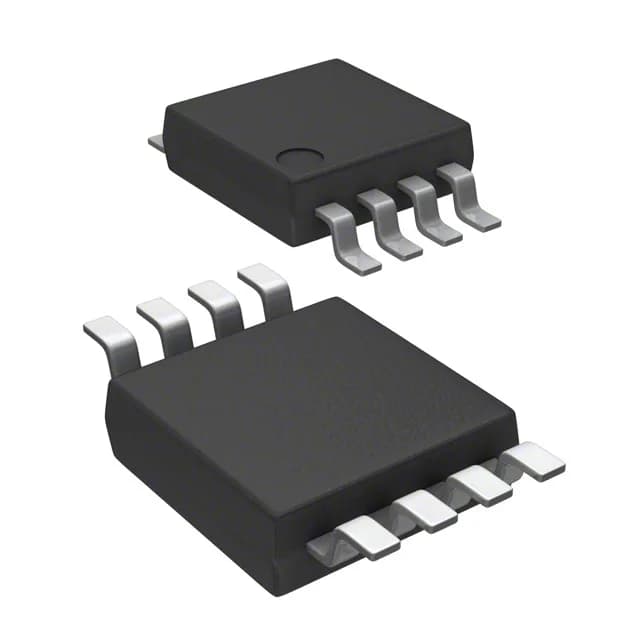

Rated for -40°C to 105°C, this DAC is at home in industrial environments — motor drives, programmable logic controllers, sensor transmitters, and outdoor telecom gear that sees seasonal extremes. The 8-uMAX package (3.00 mm width) is a compact footprint for dense PCBs, and the surface-mount body suits automated assembly. The operating temperature range is the industrial standard, not automotive (no AEC-Q100 grade is listed), so it is a solid choice for factory-floor and instrumentation designs but not for under-hood or chassis-domain automotive without additional qualification work.
Lifecycle and supply reality
The MAX5215GUA+T carries an Active product status and ROHS3 compliance. For a BOM line that needs a 14-bit I²C DAC in a small MSOP-style footprint, this part is a straightforward, low-risk selection.
